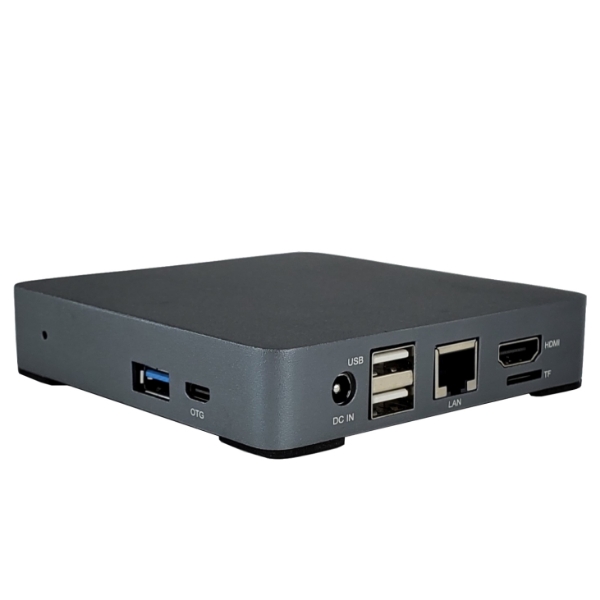

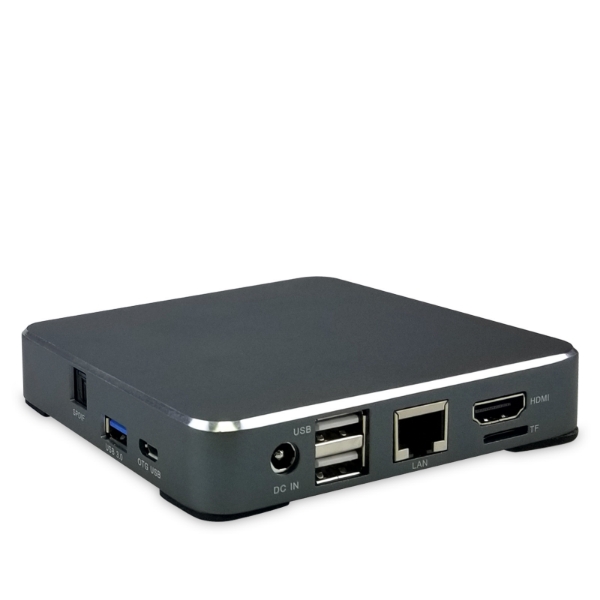

Picture of X36-mini

Picture of X36-mini

Picture of X36-mini

Picture of X36-mini

Picture of X36-mini

Picture of X36-mini

Picture of X36-mini

X36-mini

QuadCore ARM® Cortex®-A55, Android 13 /Linux , HDMI 2.0, Type-C, 4G-LTE Modem sim slot

Featured Highlights
	ARM® Cortex®-A55 64-bit Processor
	RK3566 SoC
	Mali™ G52-2EE GPU, HDMI 2.0 4K 60Hz
	2GB/4GB DDR4 Memory, 16GB/32GB/64G/128G eMMC Storage
	RJ45 LAN, WiFi+BT
	USB 3.0, 2 USB 2.0, Type-C OTG
	USB HD Audio with 2 x 3.5mm Jacks
	Power Supply: DC12V 2A Input
	OS Support: Android 13 ,11, Linux, Custom Firmware Imaging Services available
	Applications: Set Top Box, Audio Player, Digital Signage, IPTV, etc.

SKU: X36-mini

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A55 4Core 64-bit up to 1.80GHz Chipset • RK3566 SoC
Graphics • Quad-Core Mali™ G52-2EE GPU • 1 x HDMI® 2.0, 4K 60Hz Video port Memory • 2GB DDR4 (Option: 4GB or 8GB) (built-in, non-changeable)
Network • 1 x RJ45 (10/100/1000 Mb/s) Ethernet • WIFI-5 802.11 a/b/g/n/ac (Optional WIFI-6 802.11 a/b/g/n/ac/ax ) • Bluetooth 4.2 (Optional BT 5.4) • Full size Mini-PCIe slot supports 4G-LTE modem with sim slot Storage • 16GB eMMC Flash Internal Storage (Optional 32GB, 64GB, 128GB or 250GB) • 1 x TF (MicroSD) reader, supports 256GB+ MicroSD/TF Card
Audio • Everest ES8323S Audio chip • 2 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 2 x USB 2.0 ports • 1 x HDMI® 2.0 port • 1 x LAN port • 1 x TF slot • 1 x DC-In 2.5mm Power Connector
Other I/O • 1 x USB 3.0 port (Side) • 1 x Type-C OTG port (Side) • 2 x 3.5mm Audio jacks (Front) • Optional GPIO, UART Headers • Internal USB 2.0 Headers • Optional LVDS or eDP headers. System BIOS • Watchdog supported
Chassis • NUC-X Tiny Chassis • Dimensions: 4.10"(W) x 4.10"(D) x 0.99"(H), Weight: 0.7 lb. (Net) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets Power Supply • Power: DC12V 2A 24W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W
OS Support • Android 13,11, Linux • New revision Android upgradeable • Custom Firmware System Imaging Services Available Application • Set Top Box, Digital Signage, IPTV, Traffic Controller, etc. • Embedded-Longevity
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Cortex®-A55 4Core 64-bit up to 1.80GHz Chipset • RK3566 SoC
Graphics • Quad-Core Mali™ G52-2EE GPU • 1 x HDMI® 2.0, 4K 60Hz Video port Memory • 2GB DDR4 (Option: 4GB or 8GB) (built-in, non-changeable)
Network • 1 x RJ45 (10/100/1000 Mb/s) Ethernet • WIFI-5 802.11 a/b/g/n/ac (Optional WIFI-6 802.11 a/b/g/n/ac/ax ) • Bluetooth 4.2 (Optional BT 5.4) • Full size Mini-PCIe slot supports 4G-LTE modem with sim slot Storage • 16GB eMMC Flash Internal Storage (Optional 32GB, 64GB, 128GB or 250GB) • 1 x TF (MicroSD) reader, supports 256GB+ MicroSD/TF Card
Audio • Everest ES8323S Audio chip • 2 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 2 x USB 2.0 ports • 1 x HDMI® 2.0 port • 1 x LAN port • 1 x TF slot • 1 x DC-In 2.5mm Power Connector
Other I/O • 1 x USB 3.0 port (Side) • 1 x Type-C OTG port (Side) • 2 x 3.5mm Audio jacks (Front) • Optional GPIO, UART Headers • Internal USB 2.0 Headers • Optional LVDS or eDP headers. System BIOS • Watchdog supported
Chassis • NUC-X Tiny Chassis • Dimensions: 4.10"(W) x 4.10"(D) x 0.99"(H), Weight: 0.7 lb. (Net) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets Power Supply • Power: DC12V 2A 24W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W
OS Support • Android 13,11, Linux • New revision Android upgradeable • Custom Firmware System Imaging Services Available Application • Set Top Box, Digital Signage, IPTV, Traffic Controller, etc. • Embedded-Longevity
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
