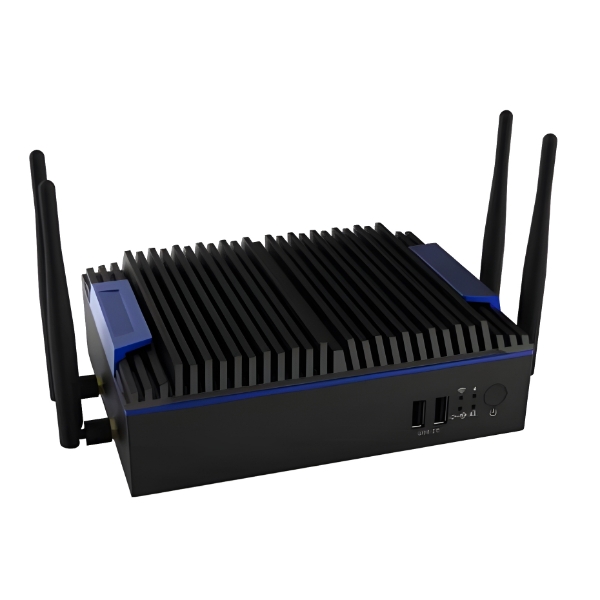

X58L2

Nano ARM® Android 12, Dual CPU 2 Displays HDMI+DP, Dual LAN+WiFi/BT+4G/SIM, 4 USB+COM+TF

Featured Highlights
	ARM® Cortex®-A76+A55 Processor
	RK3588 Chipset
	Mali™ G610 MC4 GPU, HDMI + DP
	4GB/8GB Onboard LPDDR4 Memory
	32GB/64GB eMMC, M.2-SSD/NVMe, TF slot
	2 Gigabit LAN, Onboard WiFi/BT, MiniPCIe-4G
	2 USB 3.0, 2 USB 2.0
	HD Audio Sound
	Power Supply: DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Android 12, Linux
	Applications: Set Top Box, Digital Signage, IPTV, Entertainment PC, POS/Kiosk, Network Security, etc.

SKU: X58L2

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex® Quad-Core76+ Quad-Core-A55 up to 2.6GHz Chipset • Rockchip RK3588 (SOC)
Graphics • Mali™ G610 MC4 4Core 8K GPU • 1 x HDMI® port • 1 x DP Memory • 4GB/8GB LPDDR4 (built-in, non-changeable)
Network • 2 x Gigabit (10/100/1000 Mb/s) LAN • Onboard Dual-Band (2.4/5.0GHz) WiFi/BT • 1 x MiniPCIe full size slot (for 4G Wireless Module) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x MiniPCIe full size slot (for 4G Wireless Module) • 1 x M.2-3042 for 5G/4G-LTE modem with sim slot • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.)
Storage • 32GB/64GB eMMC Flash Internal Storage • 1 x M.2-3042 for 5G/4G-LTE modem with sim slot • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.) • 1 x TF card reader Audio • 1 x 3.5mm Audio Out jack
Back Panel I/O • 2 x USB 3.0 port • 1 x HDMI® port • 1 x DP • 2 x LAN port • 1 x RS232 Serial COM port (Optional RS485) • 1 x SIM card slot • 1 x TF card reader • 1 x 3.5mm audio jack • 1 x DC-In Power Connector Internal I/O • 1 x 4Pin RS232 Serial COM header (Optional TTL) • 2 x JUSB 2.0 headers
Other I/O • 1 x RS232+RS485 Serial COM Phoenix terminal (Side) • 1 x 4in/4out GPIO Phoenix terminal (Side) • 2 x USB 2.0 ports (Front) Chassis • Nano Fanless Enclosure • Dimensions: 7.36"(W) x 5.16"(D) x 2.13"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets
Power Supply • Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Android 12, Linux
Application • Set Top Box, Digital Signage, IPTV, Entertainment PC, POS/Kiosk, Network Security, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Cortex® Quad-Core76+ Quad-Core-A55 up to 2.6GHz Chipset • Rockchip RK3588 (SOC)
Graphics • Mali™ G610 MC4 4Core 8K GPU • 1 x HDMI® port • 1 x DP Memory • 4GB/8GB LPDDR4 (built-in, non-changeable)
Network • 2 x Gigabit (10/100/1000 Mb/s) LAN • Onboard Dual-Band (2.4/5.0GHz) WiFi/BT • 1 x MiniPCIe full size slot (for 4G Wireless Module) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x MiniPCIe full size slot (for 4G Wireless Module) • 1 x M.2-3042 for 5G/4G-LTE modem with sim slot • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.)
Storage • 32GB/64GB eMMC Flash Internal Storage • 1 x M.2-3042 for 5G/4G-LTE modem with sim slot • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.) • 1 x TF card reader Audio • 1 x 3.5mm Audio Out jack
Back Panel I/O • 2 x USB 3.0 port • 1 x HDMI® port • 1 x DP • 2 x LAN port • 1 x RS232 Serial COM port (Optional RS485) • 1 x SIM card slot • 1 x TF card reader • 1 x 3.5mm audio jack • 1 x DC-In Power Connector Internal I/O • 1 x 4Pin RS232 Serial COM header (Optional TTL) • 2 x JUSB 2.0 headers
Other I/O • 1 x RS232+RS485 Serial COM Phoenix terminal (Side) • 1 x 4in/4out GPIO Phoenix terminal (Side) • 2 x USB 2.0 ports (Front) Chassis • Nano Fanless Enclosure • Dimensions: 7.36"(W) x 5.16"(D) x 2.13"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets
Power Supply • Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Android 12, Linux
Application • Set Top Box, Digital Signage, IPTV, Entertainment PC, POS/Kiosk, Network Security, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
