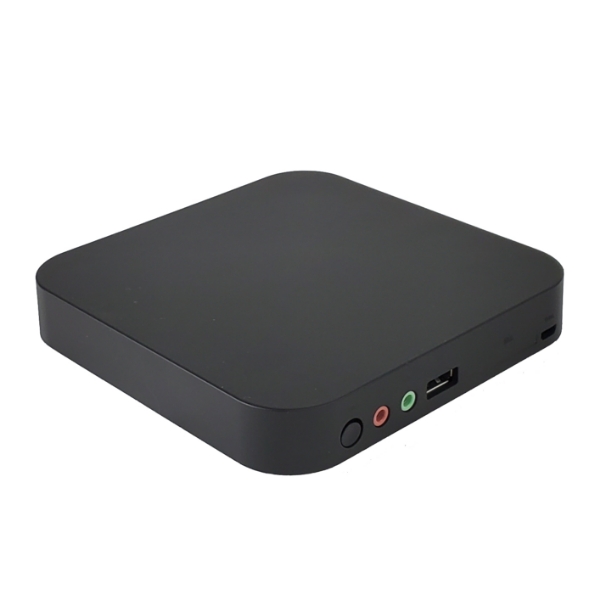

Picture of X55

Aluminum Chassis with Dual LAN Rear Ports

Aluminum Chassis Option

X55-LX2 Dual LAN

X55

True 4K Video Decoder, eMMC+M.2 NVMe SSD, M.2 5G/4G-LTE+sim Slot

Featured Highlights
	ARM® Cortex®-A55 Processor
	RK3568 SoC
	Mali™-G52-2EE GPU, HDMI 2.0
	2GB/4GB/8GB Onboard DDR4 Memory
	16GB/32GB/64GB eMMC, M.2 NVMe SSD
	Gigabit LAN + WiFi/BT, M.2 5G/4G-LTE with sim Slot
	3 USB 2.0 + OTG Ports
	HD Optical S/PDIF Audio Sound
	Power Supply: DC12V 2A Power Adapter (UL/CE/FCC Certified)
	OS Support: Android 12, Linux.
	Applications: Set Top Box, Audio Player, Digital Signage, IPTV, Entertainment, Kiosk, IoT, etc.

In Stock

SKU: X55

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A55 4Core up to 1.80GHz Chipset • Rockchip RK3568 (SOC)
Graphics • ARM® Mali™-G52 EE 4Core Graphics Processor • 1 x HDMI® 2.0, 4K 60Hz Graphics port • 1 x LVDS/eDP header (for SBC / Panel PC / All-in-One) Memory • 2GB/4GB/8GB DDR4 (built-in, non-changeable)
Network • 1 x Gigabit (10/100/1000 Mb/s) LAN (optional 2nd LAN with Aluminum chassis by model X55-LX2) • WIFI-5 802.11 a/b/g/n/ac (Optional WIFI-6 802.11 a/b/g/n/ac/ax ) • Bluetooth 4.2 (Optional BT 5.4) • 1 x M.2 3042/3052 (for 5G/4G-LTE Module pairing with SIM Slot) • Optional Internal GPS with external Antenna connector • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 3042 (for 5G/4G-LTE Module pairing with SIM Slot) or GPS Module • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe SSD)
Storage • 16GB/32GB/64GB eMMC 5.1 • 1 x M.2-2280 for NVMe SSD Slot • Optional 1 x SD slot Audio • 2 x 3.5mm Audio Out/Mic In jacks • 1 x Optical S/PDIF Digital Audio Out
Back Panel I/O • 2 x USB 2.0 port • 1 x LAN ports (Optional 2 LAN with 1 USB see X55-LX2) • 1 x HDMI® 2.0 port • 1 x DC12V-In 2.5mm Power Connector • 1 x Firmware Control Hidden Switch Internal I/O • 2 x USB 2.0 headers • 1 x Battery Connector for Real Time Clock • 1 x M.2 -2280 NVMe Slot • 1 x M.2-3420/3520 for 4G/5G-LTE with sim slot • 1 x 8in/8out GPIO (Optional) • 4 x UART Serial Console Header (Optional)
Other I/O • 1 x USB 2.0 ports (Side) • 1 x USB 3.0 OTG port (Side) • Optional 1 x SD slot (Side) • 2 x Audio/Mic jacks (Side) • 1 x IR Receiver (Front) • 1 x WiFi+BT Antenna (Side) • 1 x Optional 4G/5G Cellular Antenna (Side) • 1 x Optional On/Off Power Switch (Side) Function • 1 x GPIO header (8 I/O) • 4 x UART headers (for Serial / Console) • Optional GPS • Optional NFC
System BIOS • 32KB EEPROM • Watchdog supported Chassis • Nano-LX series Fanless Plastic for single LAN Enclosure (Aluminum for Dual LAN option) • Dimensions: 5.11"(W) x 5.00"(D) x 1.02"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets
Power Supply • Power: DC12V 2A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Android 12, Linux.
Application • Set Top Box, Digital Signage, Kiosk, POS, IPTV, IoT, Audio Player, Home Entertainment, Digital Home, etc. Environment • Operating Temperature: 0 to +40 C • Non-operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified • TAA Compliance SKU available

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Cortex®-A55 4Core up to 1.80GHz Chipset • Rockchip RK3568 (SOC)
Graphics • ARM® Mali™-G52 EE 4Core Graphics Processor • 1 x HDMI® 2.0, 4K 60Hz Graphics port • 1 x LVDS/eDP header (for SBC / Panel PC / All-in-One) Memory • 2GB/4GB/8GB DDR4 (built-in, non-changeable)
Network • 1 x Gigabit (10/100/1000 Mb/s) LAN (optional 2nd LAN with Aluminum chassis by model X55-LX2) • WIFI-5 802.11 a/b/g/n/ac (Optional WIFI-6 802.11 a/b/g/n/ac/ax ) • Bluetooth 4.2 (Optional BT 5.4) • 1 x M.2 3042/3052 (for 5G/4G-LTE Module pairing with SIM Slot) • Optional Internal GPS with external Antenna connector • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 3042 (for 5G/4G-LTE Module pairing with SIM Slot) or GPS Module • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe SSD)
Storage • 16GB/32GB/64GB eMMC 5.1 • 1 x M.2-2280 for NVMe SSD Slot • Optional 1 x SD slot Audio • 2 x 3.5mm Audio Out/Mic In jacks • 1 x Optical S/PDIF Digital Audio Out
Back Panel I/O • 2 x USB 2.0 port • 1 x LAN ports (Optional 2 LAN with 1 USB see X55-LX2) • 1 x HDMI® 2.0 port • 1 x DC12V-In 2.5mm Power Connector • 1 x Firmware Control Hidden Switch Internal I/O • 2 x USB 2.0 headers • 1 x Battery Connector for Real Time Clock • 1 x M.2 -2280 NVMe Slot • 1 x M.2-3420/3520 for 4G/5G-LTE with sim slot • 1 x 8in/8out GPIO (Optional) • 4 x UART Serial Console Header (Optional)
Other I/O • 1 x USB 2.0 ports (Side) • 1 x USB 3.0 OTG port (Side) • Optional 1 x SD slot (Side) • 2 x Audio/Mic jacks (Side) • 1 x IR Receiver (Front) • 1 x WiFi+BT Antenna (Side) • 1 x Optional 4G/5G Cellular Antenna (Side) • 1 x Optional On/Off Power Switch (Side) Function • 1 x GPIO header (8 I/O) • 4 x UART headers (for Serial / Console) • Optional GPS • Optional NFC
System BIOS • 32KB EEPROM • Watchdog supported Chassis • Nano-LX series Fanless Plastic for single LAN Enclosure (Aluminum for Dual LAN option) • Dimensions: 5.11"(W) x 5.00"(D) x 1.02"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets
Power Supply • Power: DC12V 2A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Android 12, Linux.
Application • Set Top Box, Digital Signage, Kiosk, POS, IPTV, IoT, Audio Player, Home Entertainment, Digital Home, etc. Environment • Operating Temperature: 0 to +40 C • Non-operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified • TAA Compliance SKU available
