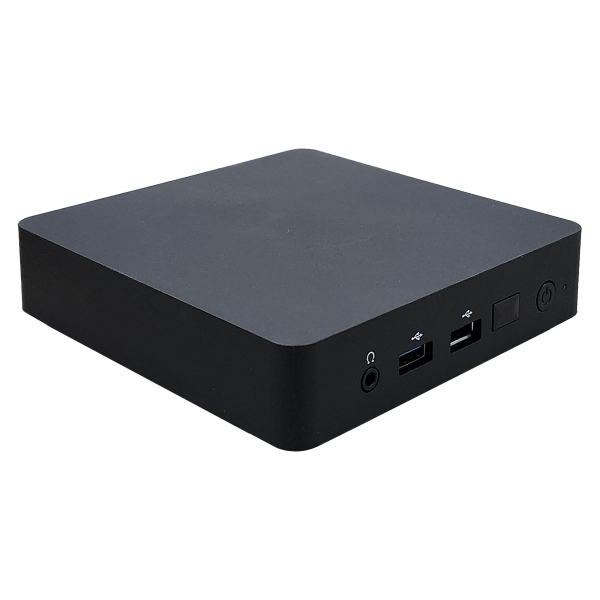

Picture of X36C

Picture of X36C

Picture of X36C

Picture of X36C

Picture of X36C

X36C

QuadCore ARM® Cortex®-A55, HDMI 2.0 4K IPTV PC, WiFi5+Bluetooth 4.2, RK3566 ARM A55 Mali G52

Featured Highlights
	ARM® Cortex®-A55 Processor
	RK3566 Chipset
	Mali™-G52 GPU, HDMI 2.0
	Onboard 2GB DDR4 Memory up to 4GB
	16GB eMMC Storage up to 32GB
	Gigabit LAN, WiFi5+BT 4.2
	3 USB 2.0, 1 USB 3.0
	HD Audio Sound
	Power Supply: DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Android 11
	Applications: Set Top Box, Digital Signage, IPTV, Entertainment PC, etc.

SKU: X36C

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A55 4Core up to 1.80GHz Chipset • Rockchip RK3566 (SOC)
Graphics • Mali™-G52 Graphics • 1 x HDMI® 2.0 port, supports a max. resolution of 4K at 60Hz Memory • DDR4 Onboard (Option: 2GB or 4GB)
Network • 1 x 1 Gigabit (10/100/1000 Mb/s) LAN • 802.11ac/n/g WiFi-5+Bluetooth 4.2 Module • Wake on LAN Storage • eMMC Flash Internal Storage (Option: 16GB or 32GB)
Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 1 x HDMI® 2.0 port • 1 x LAN port • 2 x USB 2.0 Port • 1 x DC-In 2.5mm Power Connector
Other I/O • 1 x USB 2.0 ports (Front) • 1 x USB 3.0 port (Front) • 1 x 3.5mm audio (Front) System BIOS • Watchdog supported
Chassis • Nano-MX5 Chassis • Dimensions: 5.00"(W) x 5.00"(D) x 1.20"(H), Weight: 0.7 lb (Net) • Color: Black, custom colors available with special order • VESA/wall Mount Ready Power Supply • Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W
OS Support • Android 11 Application • Set Top Box, Digital Signage, IPTV, Traffic Controller, etc.
Environment • Operating Temperature: 10 to +50 C • Non operating temperature: -40 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 0% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
