Picture of X870E2

X870E2

AMD Zen5 Ryzen™ Socket AM5, PCIe 5.0 x16 Slots, 3M.2 SATA3, ATX Tower

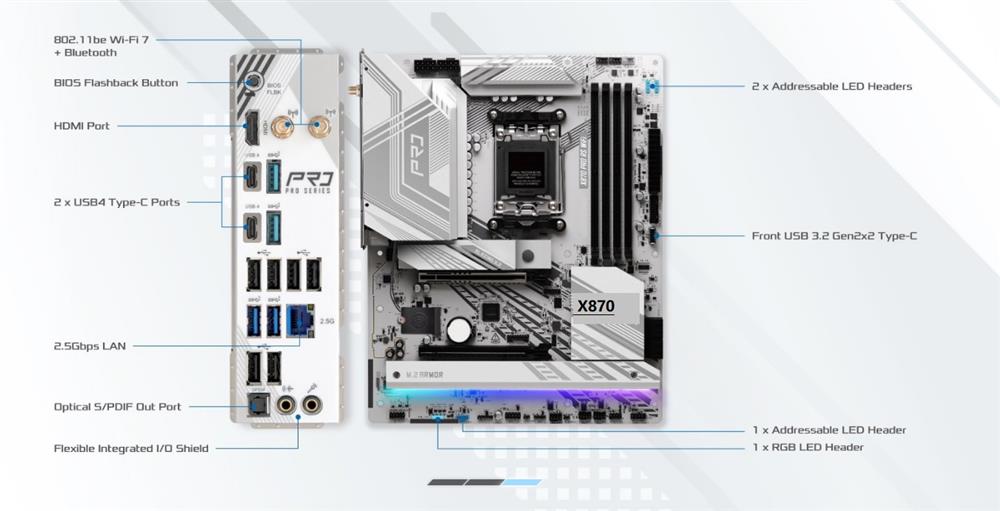

Featured Highlights
	AMD Zen 5 Ryzen™ Processor Socket AM5
	AMD X870 Chipset
	AMD RDNA™ Graphics, HDMI® 2.1 + 2 Type-C
	4 DDR5 DIMM for up to 256GB Memory
	4 SATA-6Gb/s, 3 M.2 NVMe
	1 PCIe 5.0 slot, 3 PCIe 4.0 slots
	2.5GbE LAN, M.2 WiFi/BT
	7.1 ALC1220 Audio Sound
	7 USB 3.2, 9 USB 2.0, 2 Type-C
	Dimension: 21.6" (L) x 8.26"(W) x 20"(H)
	Color: Black/White
	OS Support: Windows 10/11
	Applications: Computing PC, Gaming, Digital Signage, IPTV, AV Player, High-End Gaming, etc.

SKU: X870E2

Specifications
Request for Info

Product specifications

Processor • AMD Zen 5 Ryzen™ 9000 Processor Socket AM5 LGA1718 • AMD Ryzen™ 9 9950X 16C/32T 4.30/5.70GHz 64M CPU 170W • AMD Ryzen™ 9 9900X 12C/24T 4.40/5.60GHz 64M CPU 120W • AMD Ryzen™ 7 9700X 8C/16T 3.80/5.50GHz 32M CPU 65W • AMD Ryzen™ 5 9600X 6C/12T 3.90/5.40GHz 32M CPU 65W Chipset • AMD X870 Chipset
Graphics • AMD RDNA™ 3 Integrated Graphics • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* Memory • 4 x DDR5 DIMM • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* • Max. capacity of system memory: 256GB • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Network • 1 x Dragon RTL8125BG 2.5GbE (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module • Supports AMD CrossFire™ • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) • 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) • 4 x SATA3 6.0 Gb/s Connectors • Supports RAID 0 and RAID 1 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

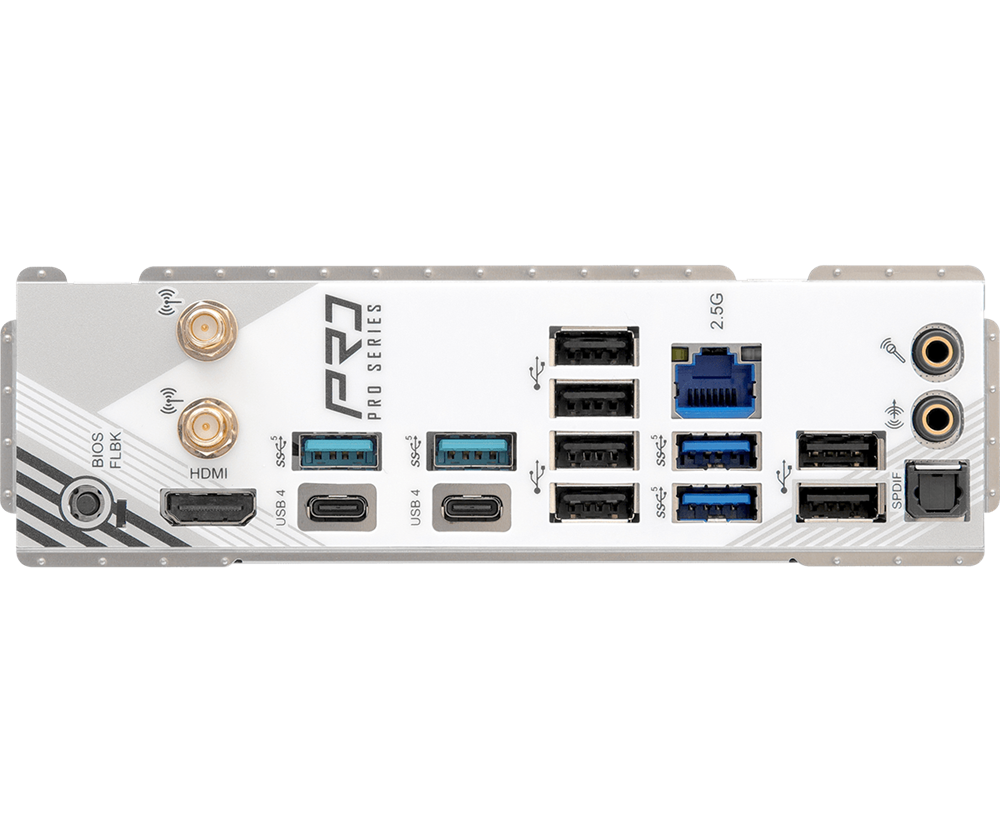

Back Panel I/O • 2 x Antenna Ports • 1 x HDMI Port • 1 x Optical SPDIF Out Port • 2 x USB4 Type-C Ports (40 Gb/s)* • 4 x USB 3.2 Gen1 Type-A Ports • 6 x USB 2.0 Ports • 1 x RJ-45 LAN Port • 1 x BIOS Flashback Button • 1 x Line Out Jack (Gold Audio Jack) • 1 x Microphone Input Jack (Gold Audio Jack) Internal I/O • 1 x 24 pin ATX Power Connector • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) • 1 x Front Panel Audio Connector • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
System BIOS • AMI® UEFI 256Mb BIOS with GUI support Systemboard • Small Form Factor • Back I/O

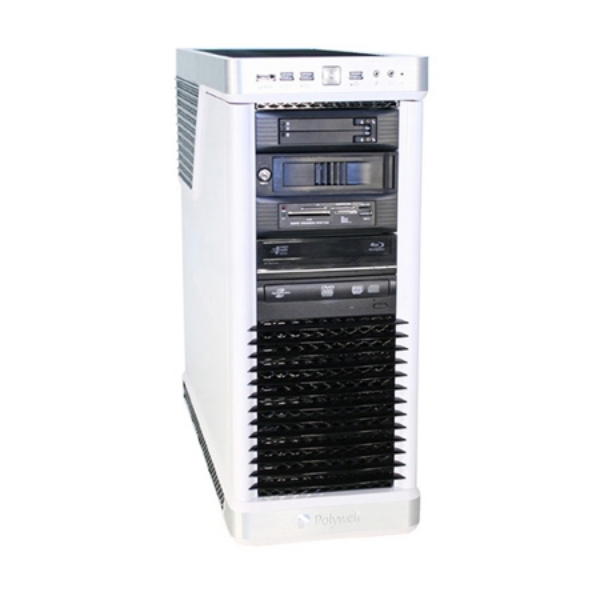

Chassis • TS900W 9-Bay ATX Tower • 9 external 5.25" with Easy Front Removable Tray • 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch Power Supply • 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch) • Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified • Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration.
OS Support • Windows 11/10 64-bit Application • Set Top Box, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, High-End Gaming, etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • AMD Zen 5 Ryzen™ 9000 Processor Socket AM5 LGA1718 • AMD Ryzen™ 9 9950X 16C/32T 4.30/5.70GHz 64M CPU 170W • AMD Ryzen™ 9 9900X 12C/24T 4.40/5.60GHz 64M CPU 120W • AMD Ryzen™ 7 9700X 8C/16T 3.80/5.50GHz 32M CPU 65W • AMD Ryzen™ 5 9600X 6C/12T 3.90/5.40GHz 32M CPU 65W Chipset • AMD X870 Chipset
Graphics • AMD RDNA™ 3 Integrated Graphics • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz • 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* Memory • 4 x DDR5 DIMM • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* • Max. capacity of system memory: 256GB • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Network • 1 x Dragon RTL8125BG 2.5GbE (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module • Supports AMD CrossFire™ • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) • 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) • 4 x SATA3 6.0 Gb/s Connectors • Supports RAID 0 and RAID 1 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Back Panel I/O • 2 x Antenna Ports • 1 x HDMI Port • 1 x Optical SPDIF Out Port • 2 x USB4 Type-C Ports (40 Gb/s)* • 4 x USB 3.2 Gen1 Type-A Ports • 6 x USB 2.0 Ports • 1 x RJ-45 LAN Port • 1 x BIOS Flashback Button • 1 x Line Out Jack (Gold Audio Jack) • 1 x Microphone Input Jack (Gold Audio Jack) Internal I/O • 1 x 24 pin ATX Power Connector • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) • 1 x Front Panel Audio Connector • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
System BIOS • AMI® UEFI 256Mb BIOS with GUI support Systemboard • Small Form Factor • Back I/O
Chassis • TS900W 9-Bay ATX Tower • 9 external 5.25" with Easy Front Removable Tray • 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch Power Supply • 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch) • Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified • Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration.
OS Support • Windows 11/10 64-bit Application • Set Top Box, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, High-End Gaming, etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
