Processor
• Intel® Core™ i5-6200u 2.30/2.80GHz 2Core 4Threads 3M 15W • Option: 6th Generation Skylake Intel® Core™ i3-6100u, i3-6006u, i3-6157u, i5-6200u, i5-6260u, i5-6267u, i5-6287u, i7-6500u, i7-6560u, i7-6567u, i7-6600u, Pentium® 4405u, Celeron® 3855u
Chipset
• Intel® Skylake Platform (SOC)
|
Graphics
• Intel® HD 520 Graphics, 4K Resolution • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP 4K 60Hz Graphics port
Memory
• 1 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 32GB
|
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (SATA-6Gb/s or PCIe x4 NVMe)
|
Storage
• 1 x SATA 6Gb/s • 1 x M.2 2280 (SATA-6Gb/s or PCIe x4 NVMe)
Audio
• Realtek® ALC662 6-channel (5.1)
|
Back Panel I/O
• 2 x RJ45 Serial COM ports • 1 x HDMI® port • 1 x DP • 1 x LAN port • 1 x DC-In 2.5mm Power Connector
Other I/O
• 4 x USB 3.0 ports (Front) • 2 x USB 2.0 ports (Front)
|
System BIOS
• AMI® UEFI / Legacy BIOS

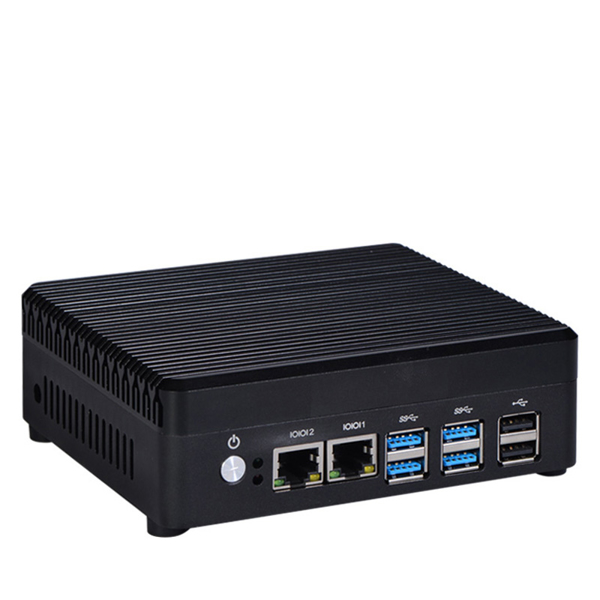

Chassis
• Nano-F5 Chassis • Dimensions: 5.43"(W) x 4.96"(D) x 1.65"(H) (Height and Width dimension changeable), Weight: 1.5 lb. (Net) 6 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
|
Power Supply
• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
• Windows 7 is not supported by Kaby Lake and Coffee Lake processor but Skylake only
|
Application
• Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, Industrial Control/IPC, etc.
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
