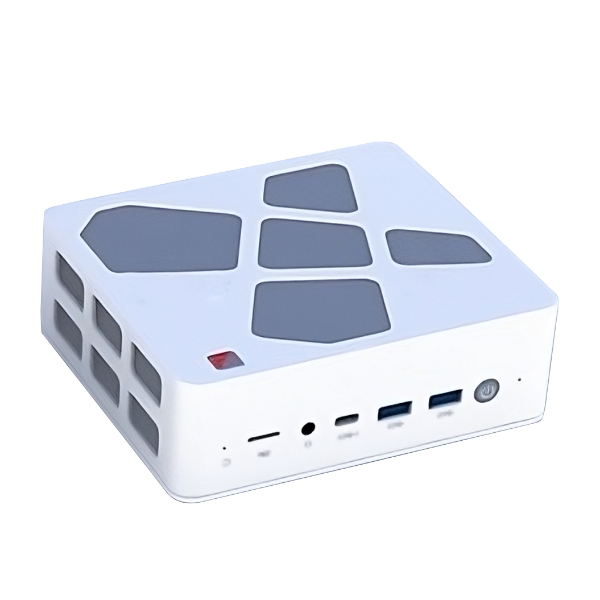

Picture of Nano-R7-8000V4

Picture of Nano-R7-8000V4

Picture of Nano-R7-8000V4

Nano-R7-8000V4

AMD Ryzen™ 7 8845HS, 4 Display DP HDMI 2 Type-C to (HDMI/DP), 2 M.2 NVMe 2 LAN, Radeon 780M DDR5

Featured Highlights
	AMD Ryzen™ 7 8845HS 8C/16T Processor
	AMD Radeon™ 780M Graphics, HDMI+ DP
	2 x DDR5 SO-DIMM for up to 96GB Memory
	2 M.2 2280 NVMe PCIe 4.0 Gen4 x4 Dual SSD
	2 x Intel I226-V 2.5G LAN
	2 USB 3.2, 2 USB 2.0
	Power Supply: DC19V input
	OS Support: Windows 11/10, Linux
	Applications: Set Top Box, Digital Signage, POS/Kiosk, IPTV, Traffic Controller, etc.

SKU: Nano-R7-8000V4

Specifications
Request for Info

Product specifications

Processor • AMD Ryzen 7 8845HS 8C 16T up to 5.1GHz 35-54W TDP Chipset • AMD SoC
Graphics • AMD Radeon™ 780M Graphics • Support 4 Display DP HDMI 2 Type-C to (HDMI/DP) Memory • 2 x DDR5 SO-DIMM 5600MHz Slots • Supports up to 96GB
Network • 2 x Intel I226-V 2.5G LAN Expansion Slot • Optioanl 1 M.2 2230 Slot for RTL 8852BE WIFI 6E&BT 5.3
Storage • 2 x M.2 2280 NVMe PCIe 4.0 Gen4 x4 Dual SSD Audio • 1 x audio
Back Panel I/O • 1 x HDMI® 2.1 ports • 1 x DP 1.4 ports • 2 x USB 3.2 • 2 x USB 2.0 • 1 x 2.5G LAN • 1 x Audio • 1 x USB4 Type C ( PD/DATA/Video ) • 1 x 19V DC-In System BIOS • Watchdog supported
Chassis • Nano size enclosure 6.58"(W) x 4.96"(D) x 2.00"(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Optional VESA Bracket Available Power Supply • Power: 100-240V, DC19V 6.3A 120W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11/10, Linux Application • Set Top Box, Digital Signage, POS/Kiosk, IPTV, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • AMD Ryzen 7 8845HS 8C 16T up to 5.1GHz 35-54W TDP Chipset • AMD SoC
Graphics • AMD Radeon™ 780M Graphics • Support 4 Display DP HDMI 2 Type-C to (HDMI/DP) Memory • 2 x DDR5 SO-DIMM 5600MHz Slots • Supports up to 96GB
Network • 2 x Intel I226-V 2.5G LAN Expansion Slot • Optioanl 1 M.2 2230 Slot for RTL 8852BE WIFI 6E&BT 5.3
Storage • 2 x M.2 2280 NVMe PCIe 4.0 Gen4 x4 Dual SSD Audio • 1 x audio
Back Panel I/O • 1 x HDMI® 2.1 ports • 1 x DP 1.4 ports • 2 x USB 3.2 • 2 x USB 2.0 • 1 x 2.5G LAN • 1 x Audio • 1 x USB4 Type C ( PD/DATA/Video ) • 1 x 19V DC-In System BIOS • Watchdog supported
Chassis • Nano size enclosure 6.58"(W) x 4.96"(D) x 2.00"(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Optional VESA Bracket Available Power Supply • Power: 100-240V, DC19V 6.3A 120W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11/10, Linux Application • Set Top Box, Digital Signage, POS/Kiosk, IPTV, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
