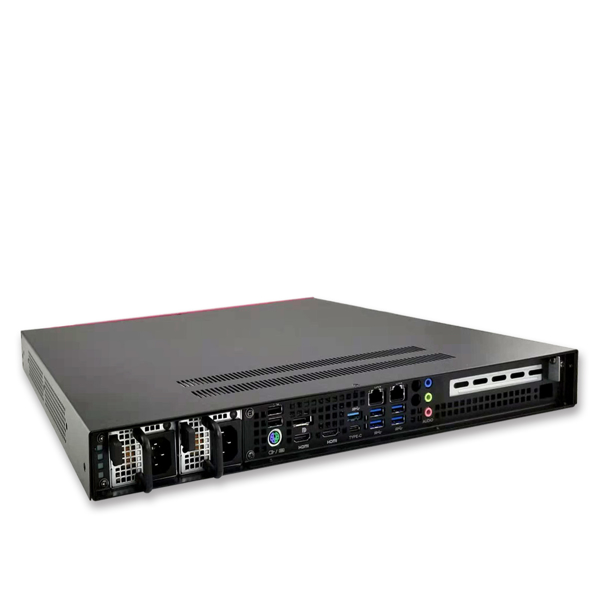

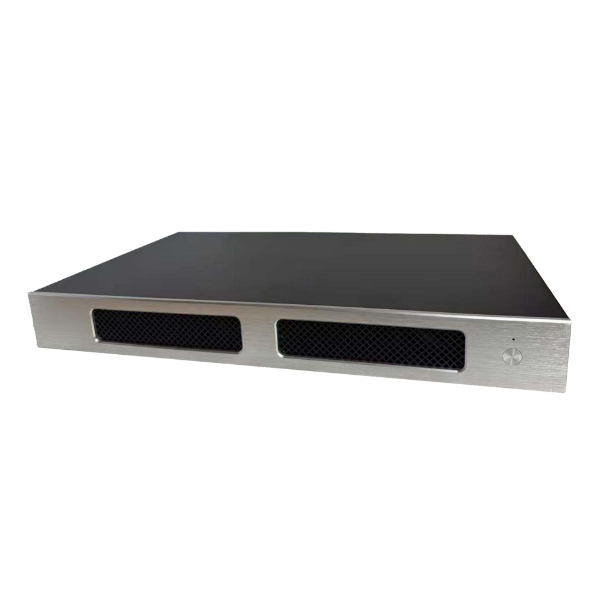

1U-1000U

Low Cost Mini Server with PCIe 16x Slot.

Featured Highlights
•	Dimensions: 17.2"(W) x 12.9"(D) x 1.75"(H)
•	Mini 1U front mount, Fanless Aluminum Chassis.
•	PCIe 4x or 16x Slot through RISER
•	2 x 2.5" Hot Swap Drive Bay+mSATA/M.2 SSD + Internal 1 x 3.5" or 2 x 2.5" drive bays
•	Mini-ITX Form Factor(171mm X 171mm)
•	180W to 400W mini 1U AC Power Supply 100-240V
•	Color: Black
•	OS support: Windows Server 2016, Windows 10, 8，7, XP, Embedded, Linux: CentOS, FreeBSDs.
•	Applications: Internet Server, Network Appliance, Phone System, Digital Signage, Office Server, Home Server.

SKU: 1U-1000U

Supported Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

C3338L4	Atom-C (BGA-1310)	Denverton C3000	2 DDR4 128G/1Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
B8500L6+2SFP	Socket 1150 Haswell	B85	2 DDR3SO	Intel HD 5000	6 intel/F\82574L+2 SFP/F	2 H	2 F	1 VGAH	1 MiniPCIe+PCIe 1x	1 F-Console(RJ45)	USB Audio
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
B8500L4/H8100L4	Socket 1150 Haswell	B85	4 DDR3	Intel HD 5000	4 Intel\i350	4 H	2 R	1 HDMI+1 DP+1 VGA	1 MiniPCIe+PCIe 8x	TPM	5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J1900SFP	J1900	Bay Trail	1 DDR3SO	1 DDR3L SO-DIMM	7 intel/F\i211-AT+2 SFP/F	3 F			MiniPCIe(Opt)+PCIe 8x	GPIO	5.1 ALC662
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
i2311	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Nvidia GT1030	1 Realtek\RTL8111H	2 H	4 R	1 HDMI+1 LVDS/H			5.1 ALC662
1U-12DP	Socket 1155 Ivy Bridge	Z77	2 DDR3	2 Radeon 7750	2 Intel	2 R+4 H	2 R	12 DP+1 VGA	MiniPCIe		option
Q370-15HDMI	8/9th Socket 1151 vPro	Q370	2 DDR4SO	2 Radeon 8860	2 Intel\I211AT	2 R	1 F+2 R	15 HDMI2.0			5.1 ALC662
