Processor
• Intel® 6th/7th/8th Generation Processor • LGA1151 socket series with 35W, 65W to 95W TDP • Intel® Core™ i7-8700, 8700T series 6C/12T 12M Cache • Intel® Core™ i5-8400, 8400T series 6C/6T 9M Cache • Intel® Core™ i3-8100, 8100T series 4C/4T 6M Cache • Intel® Pentium® Gold G5600 series 2C/4T 4M and Celeron® G4900 series 2C/2T 2M
Chipset
• Intel® H310C Express Chipset
|
Graphics
• On board NVIDIA® GT1030, 2GB VRAM • Support 1 Graphics port, 1 header • 1 x HDMI® , supporting a maximum resolution of 4K Support for HDMI® 1.4 version and HDCP 2.2 • 1 x LVDS header
Memory
• 1 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 16GB
|
Network
• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module)
|
Storage
• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Stereo Audio jacks
|
Back Panel I/O

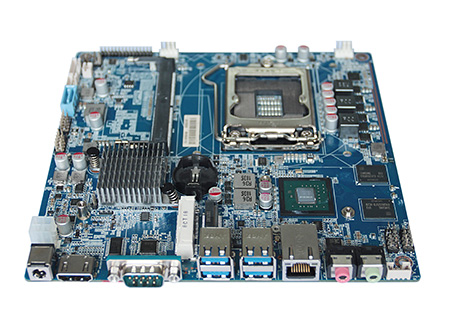

• 4 x USB 3.0 ports • 1 x RS232 Serial COM port • 1 x HDMI® port • 1 x LAN port • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 2 x USB 2.0 headers • 1 x LVDS header
|
System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported
|
Chassis

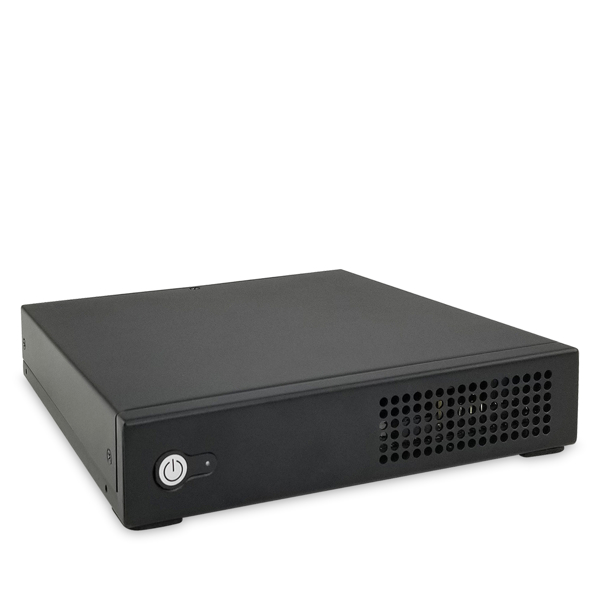

• 140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7.00"(W) x 7.20"(D) x 1.40"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • 140D without front USB ports is 7"(D) 140D2 with 2 front USB port is 7.5"(D) • Option: 1000 Aluminum Form Factor
Power Supply
• Power: DC12V or DC19V 150W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
|
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, etc.
|
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
