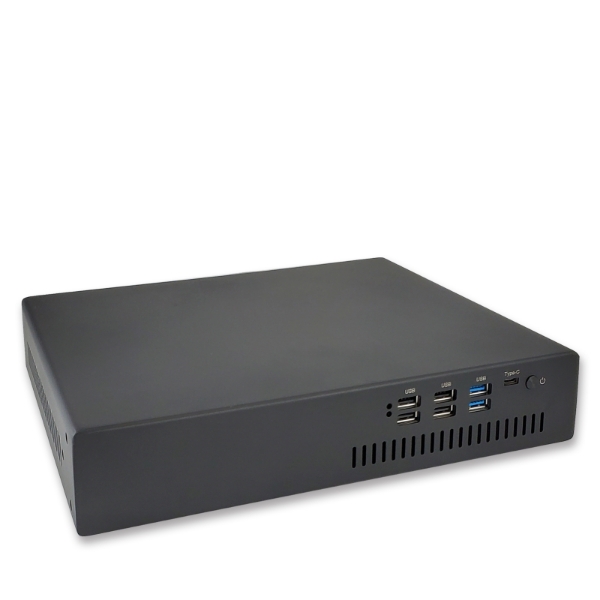

G4060-H13-i7

13th Gen. Intel® H-Series i7, Nvidia® RTX4060-8G Graphics, 2 M.2 slots+WiFi/BT, 6 USB 3.0+2 USB 2.0+Type-C

Featured Highlights
	13th Gen. Intel® Core™ i7 H-Series Processor
	Intel® Raptor Lake-H Chipset
	NVIDIA® RTX4060 + Onboard Intel® Iris® Xe , 1 HDMI + 3 DP + Type-C
	2 DDR5 SO-DIMM for up to 128GB Memory
	2 M.2 NVMe/SSD, supports 1 x 2.5" HDD/SSD
	Gigabit LAN, M.2-WiFi/BT
	6 USB 3.0, 2 USB 2.0, Type-C
	7.1 ALC892 Audio Sound
	DC19V/15.79A Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11, Linux, etc.
	Applications: GPU Computing, AI Edge, Video processing, High-Performance PC, Digital Signage, Gaming PC, etc.

SKU: G4060-H13-i7 RTX4060

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-13620H 3.60/4.90GHz,10Core 16Threads 24M 35/45W Chipset • Intel® HM670 for Alder Lake-H and Raptor Lake-H
Graphics • NVIDIA® GeForce RTX4060 Graphics Processor with 8GB Graphics Memory • Multi-display for up to Quad 4K monitors • 1 x HDMI® 2.1 ports, supports 4K 60Hz, • 3 x DP 1.4 ports, supports 4K 60Hz • Intel® 13th Gen Iris® Xe Graphics with Deep Learning and VPU technologies • 1 x Type-C port (HDMI® 2.1 or DP 1.4 signal for 8K video) Memory • 2 x DDR5 SO-DIMM • 4800MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 128GB
Network • 2 x Realtek® RTL8111DL Gigabit (10/100/1000 Mb/s) LAN • 802.11ac/n/g WiFi with Bluetooth 4.0/4.2 • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCIe 4.0 x16 slot (for Nvidia® RTX4060/3070M/3060M GPU Module) • 2 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe/SSD)
Storage • 2 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe/SSD) • 1 x 2.5" 7-9mm HDD/SSD Audio • Realtek® ALC892 (7.1) • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 3.0 ports • 2 x HDMI® 2.1 ports • 2 x DP 1.4 ports • 2 x LAN port • 2 x 3.5mm Audio jack • 1 x DC Power Connector Other I/O • 4 x USB 3.0 ports (Front) • 2 x USB 2.0 ports (Front) • 1 x Type-C port (Front)
System BIOS • AMI® BIOS • Watchdog supported Chassis • Dimensions: 12.6"(W) x 9.4"(D) x 2.2"(H), Weight: 5.5 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU and GPU Fans with Heatsinks • Color: Grey as default color, option: Black, Silver, Gold. Other custom color available
Power Supply • Power: DC19V 15.79A 300W Power Adapter 2.5mm (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11, Linux, and etc.
Application • GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc. Environment • Operating Temperature: 0 to +70 C • Non operating temperature: -20 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
