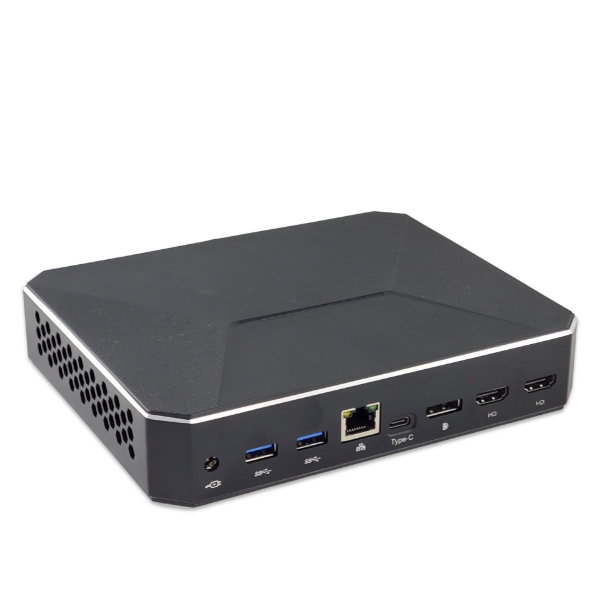

Picture of Nano-U8MX250

Picture of Nano-U8MX250

Picture of Nano-U8MX250

Picture of Nano-U8MX250

Picture of Nano-U8MX250

Nano-U8MX250

Nano Size Core™ i5/i7, UHD + MX230/250 NVIDIA Graphics, 2HDMI 2.0+DP Triple Display, Deep Learning GPU Computing

Featured Highlights
	10^th/8^th Gen. Intel® Core™ i7/i5/i3-u Processor
	Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
	Intel® UHD + MX230/250 Graphics, 2 HDMI 2.0, DP 1.2
	2 DDR4 SO-DIMM for up to 64GB Memory
	M.2 SSD/NVMe, 2.5" HDD SATA-6Gb/s
	Gigabit LAN, M.2 WiFi/BT 5.0
	4 USB, Type-C
	HD Audio Sound
	DC19V (UL/CE/FCC Certified)
	OS Support: Windows 8/10/11, Linux
	Applications: Set Top Box, Digital Signage Player PC, Edge AI, GPU Computing for AI, Industrial Control, Deep Learning, Entertainment PC, Etc

SKU: Nano-U8MX250

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-10510u 1.80/4.90GHz 4C/8T 8M 10/15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4C/8T 6M10/15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2C/4T 4M 15/25W • Intel® Core™ i7-8665u 1.90/4.80GHz 4C/8T 8M 15/25W • Intel® Core™ i7-8565u 1.80/4.60GHz 4C/8T 8M 15/25W • Intel® Core™ i5-8265u 2.10/3.90GHz 4C/8T 6M 15/25W • Intel® Core™ i3-8145u 2.10/3.90GHz 2C/4T 4M 10/15/25W • Intel® Pentium® Gold 5405u 0.80/2.30GHz 2C/4T 2M 12.5/15W Chipset • Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
Graphics • Intel® UHD Graphics + NVIDIA® MX230/250 , 4K Resolution • Support 3 Displays • 2 x HDMI® 2.0, 4K 60Hz Graphics ports • 1 x DP 1.2, 4K 60Hz Graphics port Memory • 2 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Realtek® RTL8111 Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Supports up to 802.11ax WiFi-5/Bluetooth 4.0 • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x SATA-6Gb/s 2.5" HDD • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • Intel® HD Audio Sound • 1 x 3.5mm Audio Combo jack
Back Panel I/O • 2 x USB 3.0 ports • 1 x Type-C port • 2 x HDMI® 2.0 ports • 1 x DP 1.2 port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector Other I/O • 2 x USB 2.0 ports (Front) • 1 x 3.5mm Audio Combo jack (Front)
System BIOS • AMI® UEFI / Legacy BIOS Chassis • Dimensions: Nano chassis 7.4"(W) x 6.1"(D) x 1.4"(H) • Weight: 1 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC19V Power Adapter 2.5/5.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10/8, Linux
Application • Set Top Box, Digital Signage, Edge AI, GPU Computing for AI, Industrial Control, Deep Learning, Entertainment PC, Etc Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Core™ i7-10510u 1.80/4.90GHz 4C/8T 8M 10/15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4C/8T 6M10/15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2C/4T 4M 15/25W • Intel® Core™ i7-8665u 1.90/4.80GHz 4C/8T 8M 15/25W • Intel® Core™ i7-8565u 1.80/4.60GHz 4C/8T 8M 15/25W • Intel® Core™ i5-8265u 2.10/3.90GHz 4C/8T 6M 15/25W • Intel® Core™ i3-8145u 2.10/3.90GHz 2C/4T 4M 10/15/25W • Intel® Pentium® Gold 5405u 0.80/2.30GHz 2C/4T 2M 12.5/15W Chipset • Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
Graphics • Intel® UHD Graphics + NVIDIA® MX230/250 , 4K Resolution • Support 3 Displays • 2 x HDMI® 2.0, 4K 60Hz Graphics ports • 1 x DP 1.2, 4K 60Hz Graphics port Memory • 2 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Realtek® RTL8111 Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Supports up to 802.11ax WiFi-5/Bluetooth 4.0 • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x SATA-6Gb/s 2.5" HDD • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • Intel® HD Audio Sound • 1 x 3.5mm Audio Combo jack
Back Panel I/O • 2 x USB 3.0 ports • 1 x Type-C port • 2 x HDMI® 2.0 ports • 1 x DP 1.2 port • 1 x LAN port • 1 x DC-In 2.5mm Power Connector Other I/O • 2 x USB 2.0 ports (Front) • 1 x 3.5mm Audio Combo jack (Front)
System BIOS • AMI® UEFI / Legacy BIOS Chassis • Dimensions: Nano chassis 7.4"(W) x 6.1"(D) x 1.4"(H) • Weight: 1 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC19V Power Adapter 2.5/5.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10/8, Linux
Application • Set Top Box, Digital Signage, Edge AI, GPU Computing for AI, Industrial Control, Deep Learning, Entertainment PC, Etc Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
