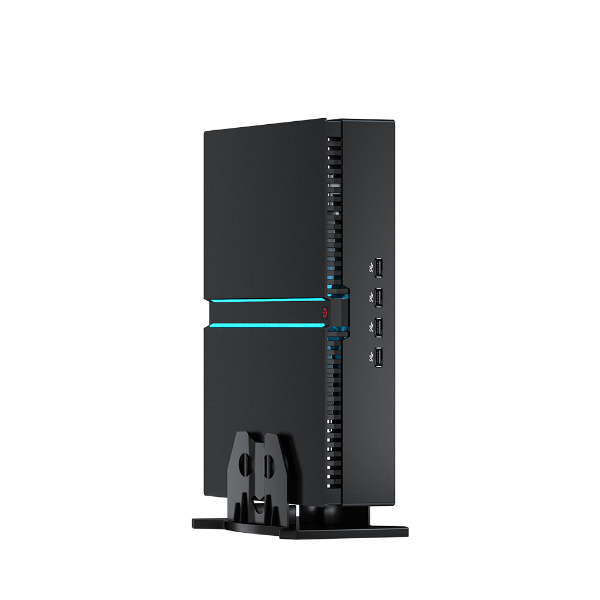

G4070-S14

14th Gen. Intel® i7/i9, Nvidia® RTX4070-12G Graphics, Dual LAN+WiFi-6

Featured Highlights
	14th Gen. Intel® Core™ i7/i9 F-Series
	Intel® 700 Raptor Lake Chipset
	NVIDIA® RTX4070 , 1 HDMI + 3 DP Quad Display
	2 DDR5 SO-DIMM for up to 64GB Memory
	M.2 NVMe/SSD + 2.5" HDD/SSD
	Dual Gigabit LAN, M.2 WiFi-6 + BT
	10 USB 3.0 / 2 USB 2.0
	S/PDIF Audio Out
	DC19V/15.79A Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11, Linux, etc.
	Applications: GPU Computing, AI Edge, Video processing, High-Performance PC, Digital Signage, Gaming PC, etc.

SKU: G4070-S14-i7 RTX4070

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-14700F 5.4GHz,20Core 28Threads 33+28M 65W • Intel® Core™ i9-14900F 5.8GHz,24Core 32Threads 36+32M 65W Chipset • Intel® H760 for Raptor Lake
Graphics • NVIDIA® GeForce RTX4070 Graphics Processor with 12GB Graphics Memory • Multi-display for up to Quad 4K monitors • 1 x HDMI® 2.1 ports, supports 4K 60Hz • 3 x DP 1.4 ports, supports 4K 60Hz Memory • 2 x DDR5 SO-DIMM • 4800MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 128GB
Network • 2 x Realtek® RTL8111DL Gigabit (10/100/1000 Mb/s) LAN • 802.11ax/ac/n/g WiFi-6 with Bluetooth 4.0/4.2 • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x PCIe 4.0 x16 slot (for Nvidia® RTX4070/4060Ti/4060 GPU Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe/SSD)
Storage • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe/SSD) • 1 x 2.5" 7-9mm HDD/SSD Audio • Realtek® ALC892 (7.1) • 1 x Optical S/PDIF Audio out
Back Panel I/O • 4 x USB 3.0 ports • 1 x HDMI® 2.1 ports • 3 x DP 1.4 ports • 2 x LAN port • 1 x Optical S/PDIF Audio port • 1 x DC Power Connector Other I/O • 4 x USB 3.0 ports (Front)
System BIOS • AMI® BIOS • Watchdog supported Chassis • Dimensions: 12.6"(W) x 9.4"(D) x 2.2"(H), Weight: 5.5 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU and GPU Fans with Heatsinks • Color: Grey as default color, option: Black, Silver, Gold. Other custom color available
Power Supply • Power: DC19V 15.79A 300W Power Adapter 2.5mm (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11, Linux, and etc.
Application • GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc. Environment • Operating Temperature: 0 to +70 C • Non operating temperature: -20 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
