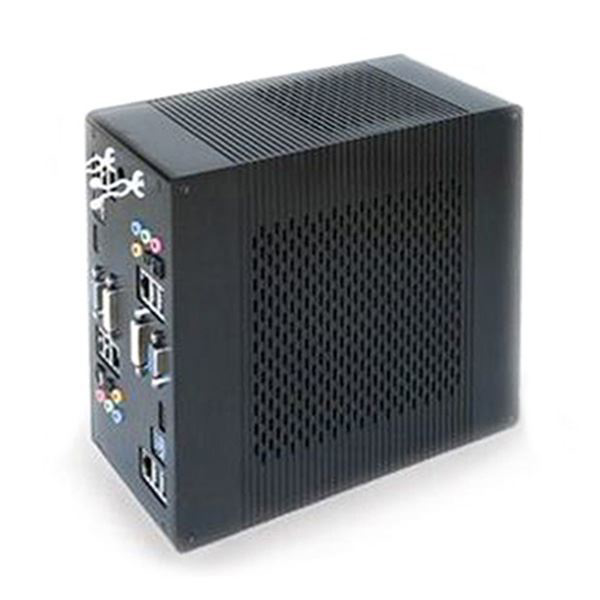

600T

Twin Core i5 PCs in Small Box 2 Independent Dual LAN PCs Load Balance or Fail Over

Featured Highlights
•	Dimensions: 8.1"(W) x 8.1"(D) x 4.1"(H)
•	Intel® Core™ i7/i5/i3 (Sandy Bridge/Ivy Bridge)
•	Intel® H61 Express Chipset
•	Up to 32GB with two 240-pin DIMM DDR3 per PC
•	4 xSATA2.0 3Gb/s ports
•	8-Channel Intel® High Definition Audio
•	Expansion: 1 x PCI-Express 2.0 x 16 slot 1 x mini PCI-Express slot
•	2 x USB 3.0 ports 4 x USB 2.0
•	Fanless Aluminum Chassis
•	VESA mount
•	Color: Black / Gold (see in "Even more images")
•	OS support: Windows 7, Windows XP, Vista, Linux, FreeBSD
•	Application: Digital Signage, Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Server/Client, POS, Bank Terminal, Hyper Terminal.

SKU: 600T

Supported Models
Specifications
BUILD YOUR CONFIGURATION
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

C3338L4	Atom-C (BGA-1310)	Denverton C3000	2 DDR4 128G/1Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
B365AL2	6/7/8/9th Socket 1151	B365	2 DDR4SO	Integrated	2 Realtek\RTL8111H	4 H	4 R+2 H	1 DP+1 HDMI+1 LVDS/H		TPM	2.1 ALC269
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
H310CAL2	6/7/8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD	2 Realtek\RTL8111H	2 R	2 R+2 F	1 DP+1 HDMI		LPT/S	5.1 ALC662
H310CA	6/7/8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD	1 Realtek\RTL8111H	4 R	2 R+2 F	1 DP+1 HDMI		LPT/S	5.1 ALC662
B150L2-Customize	6/7th Socket 1151	B150	2 DDR4	Intel HD 530 Intel HD 630	2 Intel	2 R+2 H	4 R+2 H	2 HDMI	MiniPCIe+PCIe 16x		7.1 ALC887
B150V3	6/7th Socket 1151	B150	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
H110L2V	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 VGA+1 HDMI/H	MiniPCIe+PCIe 16x		5.1 ALC662
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
H110A1/i1000A10	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe		7.1 ALC887
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
B8500L4/H8100L4	Socket 1150 Haswell	B85	4 DDR3	Intel HD 5000	4 Intel\i350	4 H	2 R	1 HDMI+1 DP+1 VGA	1 MiniPCIe+PCIe 8x	TPM	5.1 ALC662
U10A/U10AL2	i7-10710U	Comet Lake-u	2 DDR4SO	10th Gen. UHD	1 Realtek\RTL8111H+option:1 Realtek\RTL8111H	3 H	4 R+2 H	1 DP\VGA+1 HDMI+1 LVDS/H		TPM	5.1 ALC662
Slim-7000A2/6000A2	i5-7200u	Kaby Lake-u Skylake-u	1 DDR4SO	Integrated	1 Realtek\RTL8111F+option:1 Realtek\RTL8111F	option 2 R+2 H	2 R	2 HDMI/R+1 eDP/H\LVDS	1 MiniPCIe		5.1 ALC662
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
Slim-7000AEL2	i5-7200u	Kaby Lake-u	1 DDR4SO	Integrated	2 Realtek\RTL8111F	4 H	4 R	1 DP+1 HDMI+1 eDP/H\LVDS	PCIe 4x	GPIO+LPT	5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
525iD	D525	NM10	1 DDR3SO	Intel GMA 3150	1 Realtek	4 R+2 H		1 VGA	PCI	2xPS/2+Printer	5.1 ALC662
2550L2D-MxPC	D2550	NM10	2 DDR3SO	Intel HD 3650	2 Broadcom	4 R+2 H	2 R	1 HDMI+1 VGA	PCIe 1x	2xPS/2	5.1 ALC662
2600L2	N2600	NM10	1 DDR3SO	Intel HD 3600	2 Realtek	4 R+2 H		1 VGA	2 MiniPCIe+PCI	2xPS/2	5.1 ALC662
i2311	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Nvidia GT1030	1 Realtek\RTL8111H	2 H	4 R	1 HDMI+1 LVDS/H			5.1 ALC662
X570E	Socket AM4 Ryzen 3rd	AMD X570	2 DDR4	Radeon Vega	1 Intel\i211AT	2 H	4 R+2 H	1 DP+2 HDMI2.0	PCIe 16x		7.1 ALC1220
Slim-A320A	Socket AM4 Ryzen 3rd	AMD A320	2 DDR4SO	Radeon Vega	1 Realtek\RTL8111H	5 H	4 R	1 HDMI+1 LVDS/H			2.1 ALC269

Support Models

Product specifications

Motherboard • Two H8100L2 Small Form Factor MBs • optional: • H170L2 • B150L2 • H110AL2 • H170L2 • Q170A • Z790L2 • Z690L2V4 • H610L2 • H310AEL2 • Q370L3E2 • H310L4 • HM170L4 • HM170AEL2 • Z170L2 • J5040AEL2 • J4125AEL2 • J1900AEL2 • J1900AE Processor • Supports Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1155 Package • Supports Intel® Turbo-boost Technology • L3 cache varies with CPU
Chipset • Intel® H61 Express Chipset Memory • Supports Dual Channel DDR3 1600/1333/1066/800 MHz • Supports Dual Channel memory architecture • Supports non-ECC, unbuffered memory, 2 x DIMM slots • Max. capacity up to 32GB
LAN • DUAL Broadcom® 5788 PCI-Express Gigabit LAN per PC • Supports Load Balance and Fail Over connecting to each PC via 2nd LAN Port Expansion Slot • 1 x PCI-Express 2.0 x 16 slot • 1 x mini PCI-Express slot
Storage • 4 x SATAII 3.0 Gb/s connectors Audio • Realtek® ALC892 8-Channel High Definition Audio CODEC • Twin PC configuration support Multiple Audio application in one box such as one for Internet Radio, one for Audio Server playing background Music or other home entertainment tasks.
Back Panel I/O • 1 x DVI-D port(can display only when using CPU with graphics core) • 1 x HDMI® port(can display only when using CPU with graphics core) • 1 x D-Sub VGA port(can display only when using CPU with graphics core) • 2 x RJ-45 Gigabit LAN port • 2 x USB 3.0 • 4 x USB 2.0/1.1 • 8 Channel Audio I/O jacks with S/PDIF Out connector Other I/O • 2 x USB 2.0 connectors supporting additional 4 USB 2.0 ports • 2 x 4-pin fan connectors, 1 x 3-pin fan connectors • 1 x Front panel high definition audio header • 1 x S/PDIF Out header • 1 x 24-pin EPS Power connector • 1 x 4-pin ATX 12V Power connector • 1 x Front Systim Panel connector • 1 x Speaker header
System BIOS • 1 x 32 Mbit Flash Rom • Licensed AMI UEFI BIOS Manageability • WOL, PXE, PME Wake • Remote Access through Remote Control Software
OS Support • Windows 10 or 7 (32-bit or 64-bit) • Windows 10 or 7 Pro (32-bit or 64-bit) • Windows IoT / Embedded Linux / FreeBSD • Dual-boot Windows / Linux Application • Home Entertainment, Vehicle/ Boat PC, POS/Kiosk, Gaming, Surveillance, Network Appliance, Digital Signage, Hyper Terminal, Mini Servers, MiniStation, Medical Equipment, IP/Phone, etc.
Chassis • Two 2.5" HD/Solid State Drive Bays (one per PC) • Dimensions: 4.1"(L) x 8.1"(W) x 8.1"(H); 105mm(L) x 205mm(W) x 205mm(H) • System Weight (Net) and (Gross with packaging box for shipping): 4.8LB + 2LB. • Power:Two independent DC12V 5A-11A Power Adapters (one per each PC) Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
