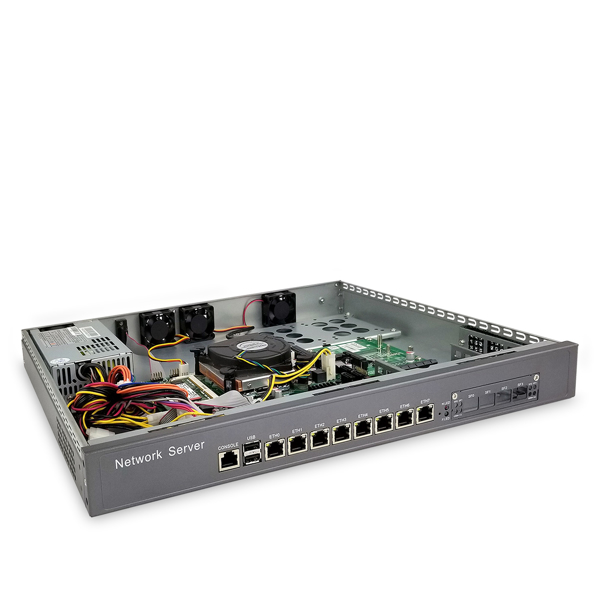

Picture of H8700L8-1U

Picture of H8700L8-1U

Picture of H8700L8-1U

H8700L8-1U

Haswell Socket-S i7/i5/i3, HD Graphics VGA, SATA+mSATA, COM+MiniPCIe+PCIe x8

Featured Highlights
	Intel® Core™ i7/i5/i3 Processor LGA1150
	4th Generation Haswell Platform
	Intel® H87 Express Chipset
	Intel® HD 4600/5000 Series Graphics, VGA
	2 DDR3 SO-DIMM for up to 32GB Memory
	PCIe 3.0 x8, MiniPCIe
	8 Intel® Gigabit LAN
	2 USB 3.0, 6 USB 2.0, COM
	SATA-6Gb/s, mSATA-6Gb/s
	Power Supply: ATX Input
	OS Support: Windows 7, Windows 8x, Windows 10, IoT, Linux
	Applications: Set Top Box, Network Appliance, POS/Kiosk, IP/PBX, IoT/Edge System, etc.

SKU: H8700L8-1U

Specifications
Request for Info

Product specifications

Processor • Intel® 4th Generation Haswell Processor • LGA1150 Socket-S series with 35W to 84W TDP Chipset • Intel® H87 Express Chipset
Graphics • Intel® HD 4600/5000 Series Graphics • Support 1 Graphics port • 1 x VGA port Memory • 2 x DDR3 SO-DIMM • 1600/1333MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 32GB
Network • 8 x Intel® Gigabit (10/100/1000 Mb/s) LAN Expansion Slot • 1 x PCI Express x8 slot (for adding additional module) • 1 x MiniPCIe full size slot
Storage • 1 x SATA 6Gb/s • 1 x mSATA 6Gb/s Back Panel I/O • 1 x VGA port
Other I/O • 2 x USB 2.0 ports (Front) • 8 x LAN ports (Front) • 1 x RJ45 Console port (Front) Internal I/O • 2 x USB 3.0 headers • 4 x USB 2.0 headers • 1 x Serial COM header
System BIOS • AMI® UEFI BIOS Chassis • 1750F Fanless with slot, Convertible to 1U Rackmount • Drive Bay: One mSATA SSD slot, 2 x 2.5"" HD/ SSD bay • Dimensions: 1.75"" (H) x 12.25 "" (W) x 8"" (D) • Option: VESAmount or Wallmount supported. • Convertible to 1U Rackmount Chassis by adding Rack Ear Kit • Weight: 2.9 lb (net) 11 lb (gross with packaging) • Option: 175C Case 1.75"" H, 300B Aluminum 2.1"" H, 400B Aluminum 2.6""H, 450S Swap/DVD+uLP, 500B 3.5"" H w/LP Slot, 500S 2U LP/RISER, 550PS Slot+1U P/S, 600B tall Slot,Hd bay, 600T Twin PC, 1750C with slot, 1U-1000U Low Cost Mini Server with PCIe 16x Slot, 1U-1000S Low Cost Mini Server with PCIe 16x Slot, 1U-1000D 5.25""CD/swap, 1U-1000T 2-in-1U Twin, 2U-2000U Short 2U 4-Slot, 5000PS uATX 2 RISER"
Power Supply • Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 7, Windows 8x, Windows 10, IoT, Linux
Application • Set Top Box, Network Appliance, POS/Kiosk, IP/PBX, IoT/Edge System, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
