Processor
• Intel® Core™ i7-6700HQ 2.60/3.50GHz 4Core 8Threads 6M 45W • Option: 7th Generation Kaby Lake Intel® Core™ i3-7100H, i5-7300HQ, i5-7440HQ, i7-7700HQ, i7-7820HQ, i7-7920HQ • Option: 6th Generation Skylake Intel® Core™ i3-6100H, i5-6300HQ, i5-6350HQ, i5-6440HQ, i7-6700HQ, i7-6770HQ, i7-6820HQ, i7-6870HQ, i7-6920HQ, i7-6970HQ
Chipset
• Intel® QM170 Express
|
Graphics
• Nvidia® GTX960M (N16P-GX), VRAM 4GB GDDR5 • Support Dual Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP, 4K 60Hz Graphics port
Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
|
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module) • 2 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
|
Storage
• 1 x SATA 6Gb/s • 2 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Audio
• Azalia Codec • Support for S/PDIF Out • 2 x 3.5mm Analog Stereo Audio jacks
|

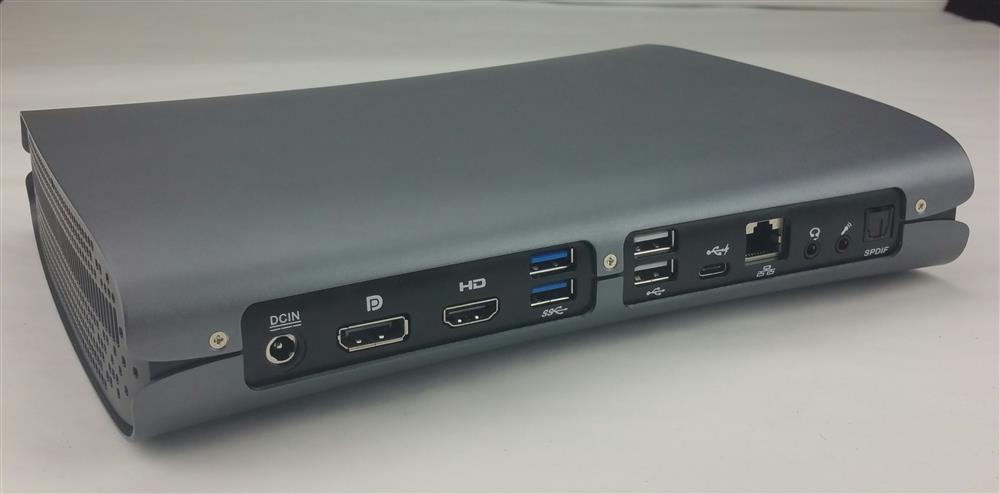

Back Panel I/O
• 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x HDMI® port • 1 x DP • 1 x Type-C port (Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) • 1 x LAN port • 1 x S/PDIF port • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
Other I/O
• 2 x USB 3.0 ports (Front)
|
Function
• 1 x TPM header
System BIOS
• Watchdog supported
|

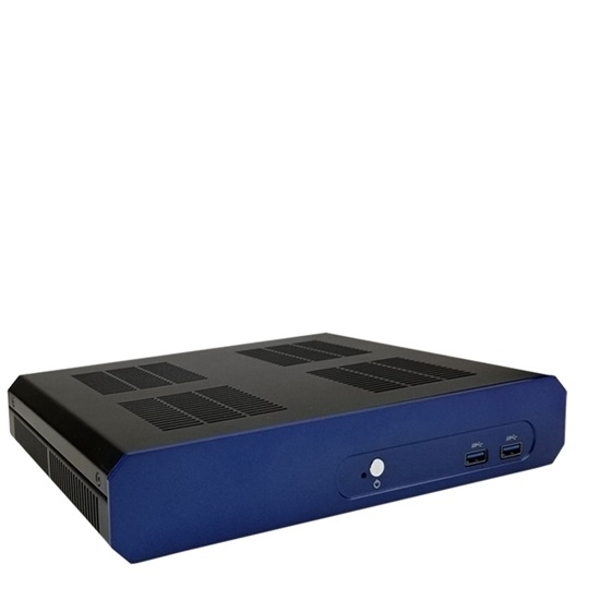

Chassis
• Dimensions: 9.8"(W) x 7.6"(D) x 2"(H) • Drive Bay: One 2.5" HD/Solid State Drive Bay • System Weight: 2.5 lb. (Net) and 4.5 lb. (gross with packaging) • Color: Black as default color, custom colors available with special order • Option: 100F Fanless 1.4" Slim • Option: 138D 7.00"(W) x 7.20"(D) x 1.38"(H) • Option: 140D 7.00"(W) x 7.20"(D) x 1.40"(H)
|
Power Supply
• Power: DC19V 120W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
• Option: Windows 7 (works with Skylake Processor family only)
|
Application
• Set Top Box, Digital Signage, etc.
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
