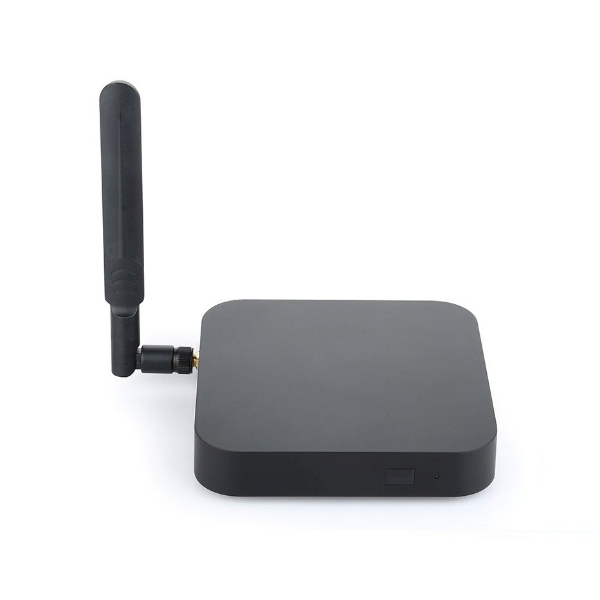

Picture of X10

Sorry - this product is no longer available

X10

8Core ARM® Cortex®-A53, HDMI 2.0 4K Display, 11ac WiFi + Bluetooth 4.1, 5.1 HD Audio + S/PDIF Out

Featured Highlights
	ARM® Cortex®-A53 Processor
	RK3368 Chipset
	PowerVR G6110, HDMI 2.0
	2GB DDR3 Memory
	RJ45 Gigabit LAN, 11ac WiFi+BT
	3 USB 2.0
	5.1 HDMI Audio Sound
	Power Supply: DC5V input or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Android 5.1
	Applications: Set Top Box, Digital Signage, IPTV, etc.

SKU: X10

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A53 8Core up to 1.20GHz Chipset • RK3368
Graphics • PowerVR G6110 • Support 1 Graphics port • 1 x HDMI® 2.0, 4K 60Hz Graphics port Memory • 2GB DDR3 (built-in, non-changeable)
Network • 1 x RJ45 Gigabit (10/100/1000 Mb/s) LAN • 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz) • Bluetooth 4.1 • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Storage • 16GB eMMC Flash Internal Storage • 1 x TF (MicroSD) reader, supports 128GB+ MicroSD/TF Card
Audio • 5.1 HD Audio Subsystem via HDMI® 1.4 Interface • Support for S/PDIF Out • 2 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 3 x USB 2.0 ports • 1 x HDMI® 2.0 port • 1 x LAN port • 1 x S/PDIF port • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector • 1 x TF reader, supports 128GB+ MicroSD Card
System BIOS • Watchdog supported Chassis • Nano-MX5 Chassis • Dimensions: 5.00"(W) x 5.00"(D) x 1.20"(H), Weight: 0.7 lb. (Net) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC5V 3A 15W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Android 5.1
Application • Set Top Box, Digital Signage, IPTV, Traffic Controller, etc. • Embedded-Longevity Environment • Operating Temperature: 0 to +50 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
