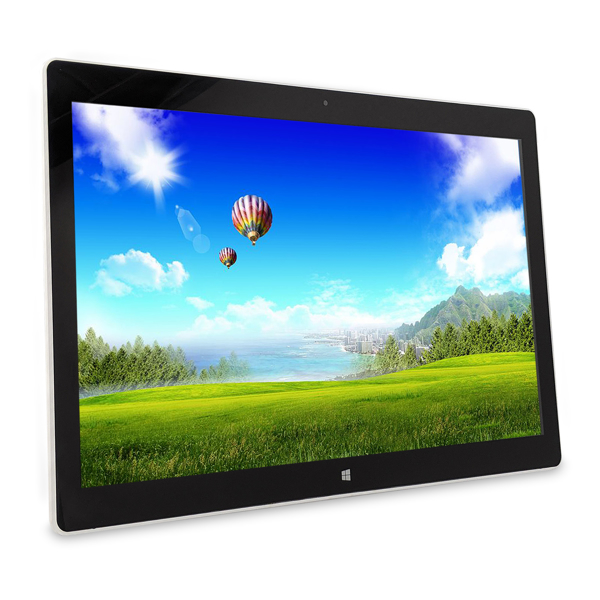

AIO-17T-N3

All-in-one 17" Touch N3350, Touch Screen with Battery, Touch Panel Kiosks, Interactive Digital Kiosks

Featured Highlights
•	Dimensions: Only 16.2"(W) x 10.3"(H) x 0.87"(D)
•	Intel® Celeron® N3350 or Pentium® N4200 processor
•	Intel® Apollo Lake Family
•	4GB DDR3 (optional 8GB) Memory
•	32G or 64G eMMC + SATA + TF Slot
•	Intel® HD500 Graphics
•	17.3” 1600x900 10-point Touch Screen
•	GigaLAN (RJ45), 2x USB 3.0+1 USB 2.0
•	2600mAH 7.4V battery
•	Supports Windows 10 and Linux

MOQ maybe required

SKU: AIO-17T-N3

Supported Models
Specifications
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

H110A1/i1000A10	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe		7.1 ALC887
U10A/U10AL2	i7-10710U	Comet Lake-u	2 DDR4SO	10th Gen. UHD	1 Realtek\RTL8111H+option:1 Realtek\RTL8111H	3 H	4 R+2 H	1 DP\VGA+1 HDMI+1 LVDS/H		TPM	5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
i2311	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Nvidia GT1030	1 Realtek\RTL8111H	2 H	4 R	1 HDMI+1 LVDS/H			5.1 ALC662
Slim-A320A	Socket AM4 Ryzen 3rd	AMD A320	2 DDR4SO	Radeon Vega	1 Realtek\RTL8111H	5 H	4 R	1 HDMI+1 LVDS/H			2.1 ALC269
U11FL2	i7-1180G7	Tiger Lake-u	2 DDR4SO	Intel Iris Xe	1 Intel\i211+1 Intel\i219	2 R+4 F	2 R	2 DP+2 HDMI2.0	1 MinPCIe	TPM	7.1 ALC897
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
Slim-7000AEL2	i5-7200u	Kaby Lake-u	1 DDR4SO	Integrated	2 Realtek\RTL8111F	4 H	4 R	1 DP+1 HDMI+1 eDP/H\LVDS	PCIe 4x	GPIO+LPT	5.1 ALC662
Slim-7000A2/6000A2	i5-7200u	Kaby Lake-u Skylake-u	1 DDR4SO	Integrated	1 Realtek\RTL8111F+option:1 Realtek\RTL8111F	option 2 R+2 H	2 R	2 HDMI/R+1 eDP/H\LVDS	1 MiniPCIe		5.1 ALC662
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
B365AL2	6/7/8/9th Socket 1151	B365	2 DDR4SO	Integrated	2 Realtek\RTL8111H	4 H	4 R+2 H	1 DP+1 HDMI+1 LVDS/H		TPM	2.1 ALC269
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
H610A	Alder Lake	H610	2 DDR4SO	Intel® 12th Gen Xe Graphics UHD 770/730/710	1 LAN + WiFi/BT		4 R	1 HDMI + 1 VGA	1		7.1 ALC897

Support Models

Product specifications

Processor • Intel® Celeron® N3350 2Core 2.4G • Option: Pentium® N4200, Celeron® N3450 Chipset • Intel® Apollo Lake SoC
Graphics • Intel® HD500 • 1 HDMI® 1.4 out for 2nd Display • LVDS Flat Panel Support Audio • Realtek® ALC622 5.1 Sound • 1 x 3.5mm In/Out Combo Jack • HDMI® 5.1 Digital Sound output • 2 x 3W Stereo (Left/Right) Speakers
LAN • Realtek® 8111 Gigabit (10/100/1000 Mb/s) • 11n/g WiFi Built-in • Optional 11ac+BT 4.0 Memory • 4GB On-board DDR3-1600/1333MHz • Optional 8GB
Storage • 32G or 128G eMMC 5.1 • SATA bay for 2.5” SSD/HD • TF Reader for MicroSD I/O • 2 x USB 3.0, 1 x USB 2.0
Video Output • 17.3” LCD Panel • 1600x900 Resolution • Optional 1920x1080 • 10-point capacitive Touch OS Support • Windows 10 and Linux
Application • POS, Kiosk, Picture Frame, Home Entertainment, Home Control, Portable Computing, Trade Show Display, Office PC, Digital Signage, General Computing. Chassis • Light Weight Plastic • Dimensions: 16.2"(W)x10.3(H)x0.87(D) • Weight (Net): 3.96 LB • Power: DC12V 2A 24W Adapter. 2600mAH 7.4V Battery
Certificate • FCC/CE, UL for the Power Adapter Environment • Operating Temperature: -5 to +40 C° • Non-operating temperature:-20 to +70C°
