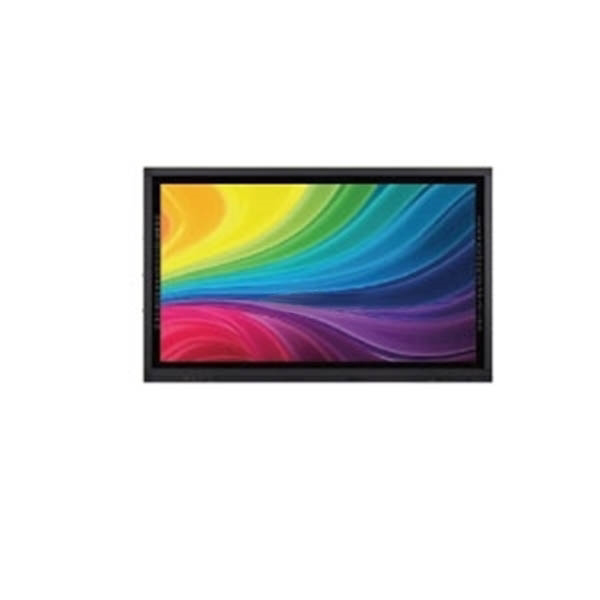

AIO-65-TOUCH

Digital Whiteboard for Teaching/Conferencing 65 inch AIO TouchScreen with Android and Windows built-in

Featured Highlights

•	Whiteboard all-in-one touchscreen design
•	Supports 6-point touch in both Windows and Android
•	Erase contents directly with fist - or use the eraser icon
•	Switch between Windows and Android with one key
•	Can interact with tablet PC or mobile phone
•	Operate the TV with touch
•	Annotation feature
•	Shortcut key on both sides of the touch screen

MOQ maybe required

SKU: AIO-65-TOUCH

Supported Models
Specifications
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

H110A1/i1000A10	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe		7.1 ALC887
U10A/U10AL2	i7-10710U	Comet Lake-u	2 DDR4SO	10th Gen. UHD	1 Realtek\RTL8111H+option:1 Realtek\RTL8111H	3 H	4 R+2 H	1 DP\VGA+1 HDMI+1 LVDS/H		TPM	5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
i2311	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Nvidia GT1030	1 Realtek\RTL8111H	2 H	4 R	1 HDMI+1 LVDS/H			5.1 ALC662
Slim-A320A	Socket AM4 Ryzen 3rd	AMD A320	2 DDR4SO	Radeon Vega	1 Realtek\RTL8111H	5 H	4 R	1 HDMI+1 LVDS/H			2.1 ALC269
U11FL2	i7-1180G7	Tiger Lake-u	2 DDR4SO	Intel Iris Xe	1 Intel\i211+1 Intel\i219	2 R+4 F	2 R	2 DP+2 HDMI2.0	1 MinPCIe	TPM	7.1 ALC897
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
Slim-7000AEL2	i5-7200u	Kaby Lake-u	1 DDR4SO	Integrated	2 Realtek\RTL8111F	4 H	4 R	1 DP+1 HDMI+1 eDP/H\LVDS	PCIe 4x	GPIO+LPT	5.1 ALC662
Slim-7000A2/6000A2	i5-7200u	Kaby Lake-u Skylake-u	1 DDR4SO	Integrated	1 Realtek\RTL8111F+option:1 Realtek\RTL8111F	option 2 R+2 H	2 R	2 HDMI/R+1 eDP/H\LVDS	1 MiniPCIe		5.1 ALC662
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
B365AL2	6/7/8/9th Socket 1151	B365	2 DDR4SO	Integrated	2 Realtek\RTL8111H	4 H	4 R+2 H	1 DP+1 HDMI+1 LVDS/H		TPM	2.1 ALC269
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
H610A	Alder Lake	H610	2 DDR4SO	Intel® 12th Gen Xe Graphics UHD 770/730/710	1 LAN + WiFi/BT		4 R	1 HDMI + 1 VGA	1		7.1 ALC897

Support Models

Product specifications

Screen Parameters • Screen Type: LED • Aspect Ratio: 16:9 • Backlight: LED • Max. Resolution 1920(Horizontal）×1080（Vertical) • Brightness: 350-400cd/m² • Contrast Ratio: Max:4000:1; Min:3200:1 • Viewing Angle: 178° • Max. Colors: 1.07B colors (10 bits） • Lifetime: ≥30000H TV System • Input Interface:USB Touch Input2、HDMI Input4 (1 in front，1 for connecting built-in PC)、VGA Input1、PC Audio Input1 、 YPbPr Input1 、AV Input2（Include Audio）、ANT（RF）Input1、TV USB Input4（1 in front, 1USB3.0）、 RJ451，SD Card Socket1，RS2321，Microphone1 • Output Interface: Spdif/Optical Output1、AV Output1、Sound Output1 • Sound Output: 2*12W @8Ω • Color System: PAL/SECAM/NTSC • Sound System D/K、B/G、I、M • Audio Preset Mode: Standard,movie, sports, music, user • Support Input: 480P/I、576P/I、720P、1080P/I • VGA Compatibility: VGA、SVGA、XGA、WXGA、SXGA • Power Supply: A.C.:100～240v 60/50 Hz • Operating Temperature: 0°~40°C；20%~80% • Standby Power ＜1W
Android TV System • Supports function of writing, annotation, erase, change different size of writing, color, etc. Supports “one key switch” about the touch function between TV and computer or other external equipment; • Supports touch of Menu in any access of TV. • Supports function of energy conservation in black screen through touching the state. • Supports shortcut key by one time, and can wake-up again by touch one time. • Supports browse webpage, and support HTML5 browser. • Supports plays local and online HD video, online music. • Supports for 1080P; • Supports browse pictures in different format. • Supports browse and management of different office documents. • Supports update software by USB; • Supports expansion of USB and SD card storage. • Supports power off/on by one key; • Supports input signal ( VGA/H Support online by Wifi, ISDB-T) Built-in Computer System OPS micro-computer (Pluggable type and easy maintenance), customized configuration is available. • CPU: Intel Core G1610/Intel Core i3 or customization. • Internal Storage: 2GB/4GB DDR3 or customization. • Hard Disk: 320G/500G or customization 500G or customization. • Power Requirement: AC input:100-240V/50-60HZ, DC output:19V/6.8A DC output:12V/5A. • Ethernet Network: 10/100/1000Mpbs WIFI/3G 802.11/b/gn • HDMI: Built-in HDMI cable • Operating System: WINDOWS 7 32bit
Function • Touch Way: Supports 6 point touch • Operating Way: Supports single click, double-click, right-click and drag. • Support Function: Touch correction function; work without driver; writing, drawing lines, annotation; USB interface • Touch Durability: 60,000,000 times. • Touch Ways: Fingers, pens, or other opaque objects. Touch Feature Index • Response Time: Single touch: less than7ms, dual touch: less than 12ms. • Excursion: Without excursion, no change with the environment. • Writing and Drawing: Writing fluently, without breaking and jag. • Resistance to Light Interference: Work normally under 30,000 illumination. • Normal Work Scope: Work normally in effective range of the display screen, without blind zone. • Touch Precision: 1mm
Touch Parameter • Calibration Precision:＜2mm • Cursor Speed: 100 Points/Second • Light Transmittance: 100% • Minimum Touch: Object >=5mm • Touch Technology: Infrared technology • Touch Frame: Front maintenance, detachable design. • Wireless Interactive Display Technology （Optional）: Can enjoy the online music, pictures, video and send it to the all-in-one touch screen by way of wireless, or can control both sides interactively. • Power Consumption(W):〈2.5W，work under USB 5V voltage, electric current less than 500mA. • Touch Frame Feature: Free from driver and calibration. Waterproof, dustproof, ultra-thin, light. Dimensions • 62.68 x 38.90 x 4.25 Inch （Without bracket） • 62.68 x 38.90 x 5.08 Inch（With bracket）
Weight • Product Weight: 163Lbs • Gross Weight:209Lbs
