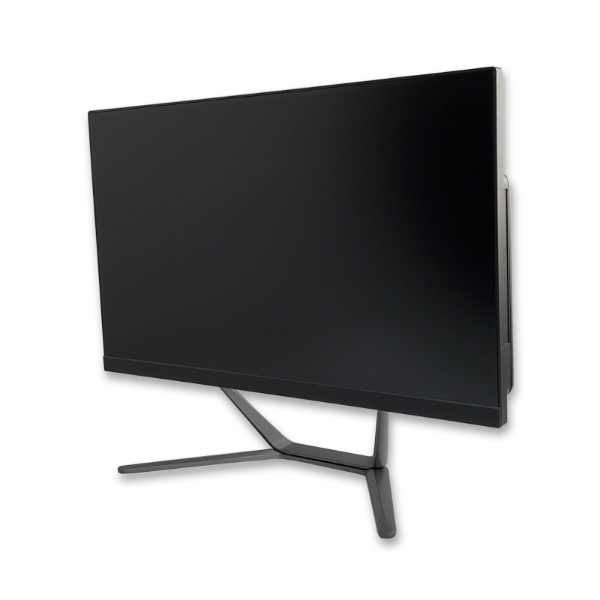

AIO-JA215C

All-in-one 21" FHD IPS, Intel® Celeron® Gemini Lake, UHD Graphics 600, 6 USB + 3 COM

Featured Highlights
•	Intel® Celeron® J4125 Processor
•	Intel® Gemini Lake Platform (SOC)
•	Intel® UHD Graphics 600, HDMI+VGA+LVDS/h+2 eDP/h
•	4GB DDR4 SO-DIMM
•	64GB mSATA SSD, SATA-6Gb/s
•	Gigabit LAN, MiniPCIe(H)-WiFi/BT
•	2 USB 3.0, 4 USB 2.0, 3 COM/h
•	DC12V Power Adapter (UL/CE/FCC Certified)
•	Applications: Home/Office or School PC, Library, Signage, Healthcare.

MOQ maybe required

SKU: AIO-JA215C

Supported Models
Specifications
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

H110A1/i1000A10	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe		7.1 ALC887
U10A/U10AL2	i7-10710U	Comet Lake-u	2 DDR4SO	10th Gen. UHD	1 Realtek\RTL8111H+option:1 Realtek\RTL8111H	3 H	4 R+2 H	1 DP\VGA+1 HDMI+1 LVDS/H		TPM	5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
i2311	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Nvidia GT1030	1 Realtek\RTL8111H	2 H	4 R	1 HDMI+1 LVDS/H			5.1 ALC662
Slim-A320A	Socket AM4 Ryzen 3rd	AMD A320	2 DDR4SO	Radeon Vega	1 Realtek\RTL8111H	5 H	4 R	1 HDMI+1 LVDS/H			2.1 ALC269
U11FL2	i7-1180G7	Tiger Lake-u	2 DDR4SO	Intel Iris Xe	1 Intel\i211+1 Intel\i219	2 R+4 F	2 R	2 DP+2 HDMI2.0	1 MinPCIe	TPM	7.1 ALC897
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
Slim-7000AEL2	i5-7200u	Kaby Lake-u	1 DDR4SO	Integrated	2 Realtek\RTL8111F	4 H	4 R	1 DP+1 HDMI+1 eDP/H\LVDS	PCIe 4x	GPIO+LPT	5.1 ALC662
Slim-7000A2/6000A2	i5-7200u	Kaby Lake-u Skylake-u	1 DDR4SO	Integrated	1 Realtek\RTL8111F+option:1 Realtek\RTL8111F	option 2 R+2 H	2 R	2 HDMI/R+1 eDP/H\LVDS	1 MiniPCIe		5.1 ALC662
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
B365AL2	6/7/8/9th Socket 1151	B365	2 DDR4SO	Integrated	2 Realtek\RTL8111H	4 H	4 R+2 H	1 DP+1 HDMI+1 LVDS/H		TPM	2.1 ALC269
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887

Support Models

Product specifications

Processor • Intel® Celeron® J4125 2.00/2.70GHz 4Core 4Threads 4M 10W Chipset • Intel® Gemini Lake Platform (SOC)
Graphics • Intel® UHD 600 Graphics • 2 x eDP headers • 1 x LVDS header • 1 x HDMI® port • 1 x VGA port Memory • 4GB DDR4 Memory • 1 x DDR4 SO-DIMM • 2400/2133MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 8GB
Network • 1 x Gigabit (10/100/1000 Mb/s) LAN • 802.11ac Dual-Band (2.4/5GHz) WiFi, Bluetooth 4.0 • 1 x MicroSIM slot • 1 x MiniPCIe Half Size slot (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe Half Size slot (for Wi-Fi/BT or Other Module)
Storage • 64GB mSATA SSD Storage • 1 x SATA 6Gb/s • 1 x mSATA slot (Taken by SSD module) Audio • 2 x 3.5mm Analog Stereo Audio jacks
I/O • 4 x USB 2.0 ports • 2 x USB 3.0 ports • 1 x LAN port • 1 x HDMI® port • 1 x VGA port • 2 x Audio jacks • 1 x DC-In 2.5mm Power Connector Video Output • 21.5" LCD • FHD 1920*1080
Internal I/O • 3 x COM headers • 2 x eDP headers • 1 x LVDS header • 1 x USB 2.0 header Function • 1 x 4in/4out-GPIO header
System BIOS • AMI® UEFI / Legacy BIOS Chassis • AIO 21" FHD 1920x1080 IPS Chassis • Dimensions: 19.41"(W) x 1.30"(D) x 11.38"(H) • Weight: 5.73 lb. • VESA, wall mount bracket compatible
Power Supply • Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, Linux
Application • Home/Office or School PC, Library, Signage, Healthcare. Environment • Operating Temperature: -5 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Celeron® J4125 2.00/2.70GHz 4Core 4Threads 4M 10W Chipset • Intel® Gemini Lake Platform (SOC)
Graphics • Intel® UHD 600 Graphics • 2 x eDP headers • 1 x LVDS header • 1 x HDMI® port • 1 x VGA port Memory • 4GB DDR4 Memory • 1 x DDR4 SO-DIMM • 2400/2133MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 8GB
Network • 1 x Gigabit (10/100/1000 Mb/s) LAN • 802.11ac Dual-Band (2.4/5GHz) WiFi, Bluetooth 4.0 • 1 x MicroSIM slot • 1 x MiniPCIe Half Size slot (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe Half Size slot (for Wi-Fi/BT or Other Module)
Storage • 64GB mSATA SSD Storage • 1 x SATA 6Gb/s • 1 x mSATA slot (Taken by SSD module) Audio • 2 x 3.5mm Analog Stereo Audio jacks
I/O • 4 x USB 2.0 ports • 2 x USB 3.0 ports • 1 x LAN port • 1 x HDMI® port • 1 x VGA port • 2 x Audio jacks • 1 x DC-In 2.5mm Power Connector Video Output • 21.5" LCD • FHD 1920*1080
Internal I/O • 3 x COM headers • 2 x eDP headers • 1 x LVDS header • 1 x USB 2.0 header Function • 1 x 4in/4out-GPIO header
System BIOS • AMI® UEFI / Legacy BIOS Chassis • AIO 21" FHD 1920x1080 IPS Chassis • Dimensions: 19.41"(W) x 1.30"(D) x 11.38"(H) • Weight: 5.73 lb. • VESA, wall mount bracket compatible
Power Supply • Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, Linux
Application • Home/Office or School PC, Library, Signage, Healthcare. Environment • Operating Temperature: -5 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
