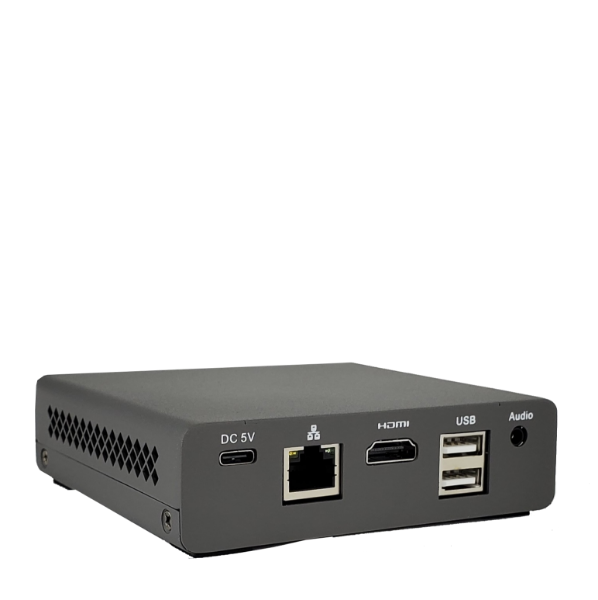

H618-Mini

Quad-Core ARM® Cortex®-A53, HDMI 2.0 4K Display Android 12.0, RJ45 LAN, 2 USB

Featured Highlights
	ARM® Cortex®-A53 Quad-Core up to 1.4GHz processor
	H618 SoC
	Mali™ T720 Graphics, HDMI® 4K UHD
	2GB LPDDR3 Memory
	Realtek® Gigabit LAN, MicroSIM
	2 USB 2.0
	16GB eMMC Storage
	5.1 ALC662 Audio Sound
	Power Supply: DC 5V Input
	OS Support: Android 12.0, Linux
	Applications: Digital Signage, Set Top Box, Airport, White-board for Education, Conference Room, POS/Kiosk, etc.

SKU: H618-Mini

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A53 Quad-Core up to 1.4GHz Chipset • H618 SoC
Graphics • Quad-Core Mali™ T720 Graphics, 4K UHD • Support 1 Graphics ports • 1 x HDMI® 2.0 port support 4K @ 60Hz Memory • 2GB LPDDR3
Network • 1 x Realtek® RTL8211F Gigabit (10/100/1000 Mb/s) LAN • On board WiFi/BT Storage • 16GB eMMC Flash Internal Storage
Audio • Realtek® ALC662 6-channel (5.1) • 1 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 2 x USB 2.0 port • 1 x HDMI® 2.0 port • 1 x LAN port
System BIOS • Watchdog supported Chassis • OPS Form Factor Chassis: 4.1"(W) x 4.1" (D) x 0.95" (H) • System Weight: 0.6 lb.
Power Supply • Power: DC 5V 2A 10W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Energy Star Compliance, Idle mode at <1W OS Support • Android 12.0, Linux
Application • Digital Signage, Set Top Box, Airport, White-board for Education, Conference Room, POS/Kiosk, etc. Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Cortex®-A53 Quad-Core up to 1.4GHz Chipset • H618 SoC
Graphics • Quad-Core Mali™ T720 Graphics, 4K UHD • Support 1 Graphics ports • 1 x HDMI® 2.0 port support 4K @ 60Hz Memory • 2GB LPDDR3
Network • 1 x Realtek® RTL8211F Gigabit (10/100/1000 Mb/s) LAN • On board WiFi/BT Storage • 16GB eMMC Flash Internal Storage
Audio • Realtek® ALC662 6-channel (5.1) • 1 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 2 x USB 2.0 port • 1 x HDMI® 2.0 port • 1 x LAN port
System BIOS • Watchdog supported Chassis • OPS Form Factor Chassis: 4.1"(W) x 4.1" (D) x 0.95" (H) • System Weight: 0.6 lb.
Power Supply • Power: DC 5V 2A 10W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Energy Star Compliance, Idle mode at <1W OS Support • Android 12.0, Linux
Application • Digital Signage, Set Top Box, Airport, White-board for Education, Conference Room, POS/Kiosk, etc. Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
