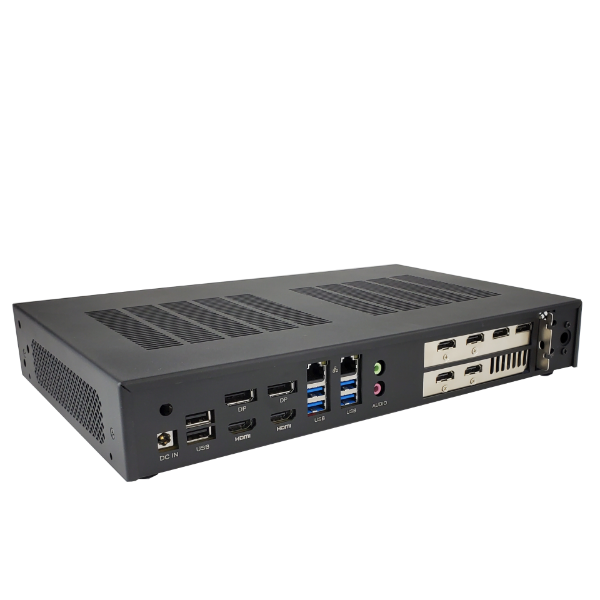

1750C Rear with Slot

13th Gen Raptor Lake Edge AI

13th Gen Raptor Lake Edge AI

13th Gen Raptor Lake Edge AI

13th Gen Raptor Lake Edge AI

13th Gen Raptor Lake Edge AI

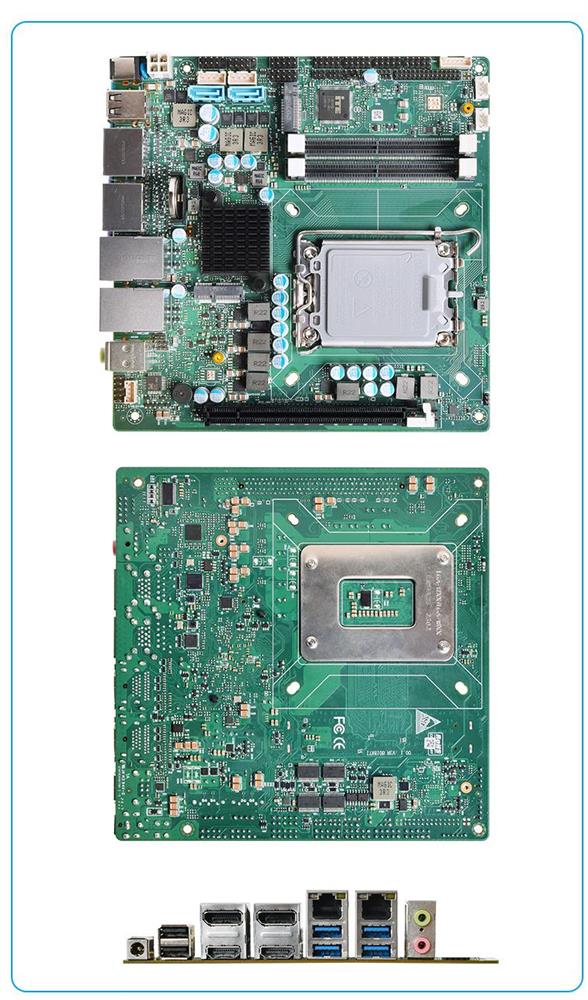

Q670L2D

13th/14th Gen Raptor Lake, 4-10 Display 2DP+2HDMI + Optional 6 HDMI AMD RX580, 2 LAN vPro+2COM, PCIe 5.0 x16 + M.2

Featured Highlights
	Intel® Core™ i9/i7/i5/i3 Socket-S Processor LGA1700
	Intel® Q670 Chipset
	Intel® UHD 700 Graphics, 2HDMI 2.1+2DP 1.4+Optional 6 HDMI 2.0
	2 DDR5 SO-DIMM for up to 64GB Memory
	M.2 2280, 4 SATA3.0 SSD/HDD
	PCIe 5.0 x16, PCIe 4.0 x4
	Dual 2.5G LAN, M.2-11ax/be WiFi-6/7+BT
	4 USB 3.2, 2 USB 2.0,
	7.1 ALC897 Audio Sound
	DC12V 80W/120W or higher wattage Power Adapter (UL/CE/FCC Certified)
	Optional 90V-240V 220W or higher wattage AC Power Supply
	OS Support: Windows 11/10, Linux, FreeBSD
	Applications: AI Edge (Edge Computing), Digital Signage, Network Security, Audio/Video PC, SoHo PC, etc.

SKU: Q670L2D

Specifications
Request for Info

Product specifications

Processor • 13th and 14th Generation Intel® Socket-S Series LGA-1700 Raptor Lake • Intel® Core™ i9-14900K, i9-13900K, i9-13900KF 24C/32T 36M Cache • Intel® Core™ i7-13700K, i7-13700KF 16C/24T 30M Cache • Intel® Core™ i5-13400K, i5-13500KF 14C/20T 24M Cache • 12th Generation Intel® Socket-S Series LGA-1700 Alder Lake • Intel® Core™ i9-12900, i9-12900T, i9-12900K 16C/24T 30M Cache • Intel® Core™ i7-12700, i7-12700T 12C/20T 25M Cache • Intel® Core™ i5-12600, i5-12500, i5-12400, i5-12400T, i5-12500T 6C/12T 18M Cache • Intel® Core™ i3-12100, i3-12100T, i3-12300, i3-12300T 4C/8T 12M Cache • Intel® Pentium® Gold G7400, G7400T 2C/4T 6M, Celeron® G6900T 2C/2T 4M Chipset • Intel® Q670 Chipset supports vPro® • Optional H610, B760, H770, Z790 Chipset
Memory • 2 x DDR5 DIMM • 4800MHz unbuffered (Dual Channel I/O) • Supports up to 64GB Graphics • Intel® UHD 770 Graphics (based on CPU) • Supports On-board 4 Display or 10 Display with Add-on • 2 x DP 1.4, max. resolution up to 7680x4320 60Hz • 2 x HDMI® 2.1, with max. resolution up to 4960x2160 60Hz • Optional AMD RX580 6 HDMI 2.0 Port Graphics Card • Optional VGA port and LVDS header
Network • 1 x Intel® I226 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x Realtek® 8125 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 (for WIFI/BT or other Module) • 1 x M.2 3042 (for 5G/4G-LTE Module pair with SIM slot) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x PCI Express 5.0 x16 slot • 1 x M.2 2230 (for WIFI/BT or other Module) • 1 x M.2 3042 (for 5G/4G-LTE Module pair with SIM slot) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe SSD)
Storage • 4 x SATA 6Gb/s (for H610 chipset, only 3 x SATA) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe SSD) Audio • Realtek® ALC897 Audio Codec (7.1) • 3 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 4 x USB 3.2 ports • 2 x USB 2.0 ports • 2 x DP 1.4 ports • 1 x HDMI® 2.1 port • Optional 1 x VGA port (replacing 1 DP) • 1 x COM port • 2 x LAN ports • 3 x 3.5mm Audio jacks Internal I/O • 2 x USB 3.2 headers • 2 x USB 2.0 headers (H610 chipset, USB 3.2 supports USB 2.0 only) • 2 x RS232/RS485 Serial COM headers • 5 x RS232 Serial COM headers • 1 x Nano-SIM slot
Function • 1 x TPM 2.0 header • 1 x 4in/4out GPIO header System BIOS • AMI® UEFI 128Mbit / Legacy BIOS with GUI support • Supports Watchdog
Systemboard • Small Form Factor and Back IO Chassis • 400B Small Form Factor Aluminum Chassis • Dimensions: 8.1"(W) x 8.1"(D) x 2.6"(H) Weight: 1.6 lb. Net 10 lb (with packaging) • Drive Bay: 2.5" • Color: Black as default color, option: Custom color, Custom logo available. MOQ required • Supports VESA, wall mount or rackmount bracket • Option: 175C Case 1.75" H, 300B Aluminum 2.1" H, 450S Swap/DVD+uLP, 500B 3.5" H w/LP slot, 500S 2U LP/RISER, 550PS slot+1U P/S, 600B tall Slot, Hd bay, 600T Twin PC, 1750C with slot, 1750F Fanless with slot, 1U-1000U Low Cost Mini Server with PCIe 16x slot, 1U-1000S Low Cost Mini Server with PCIe 16x slot, 1U-1000D 5.25"CD/swap, 1U-1000T 2-in-1U Twin, 2U-2000U Short 2U 4-slot, 5000PS uATX 2 RISER • Option: 236F3 Fanless Chassis
Power Supply • Power: DC12V 80W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10, Linux
Application • Digital Signage, Network Security, Edge AI, Audio/Video PC, Set Top Box, etc. Processor • Operating Temperature: -10 to +60 C • Non operating temperature: -20 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
